Statics - The fundamental principles

Construction principles

Statics according to the laws of balance and leverage.

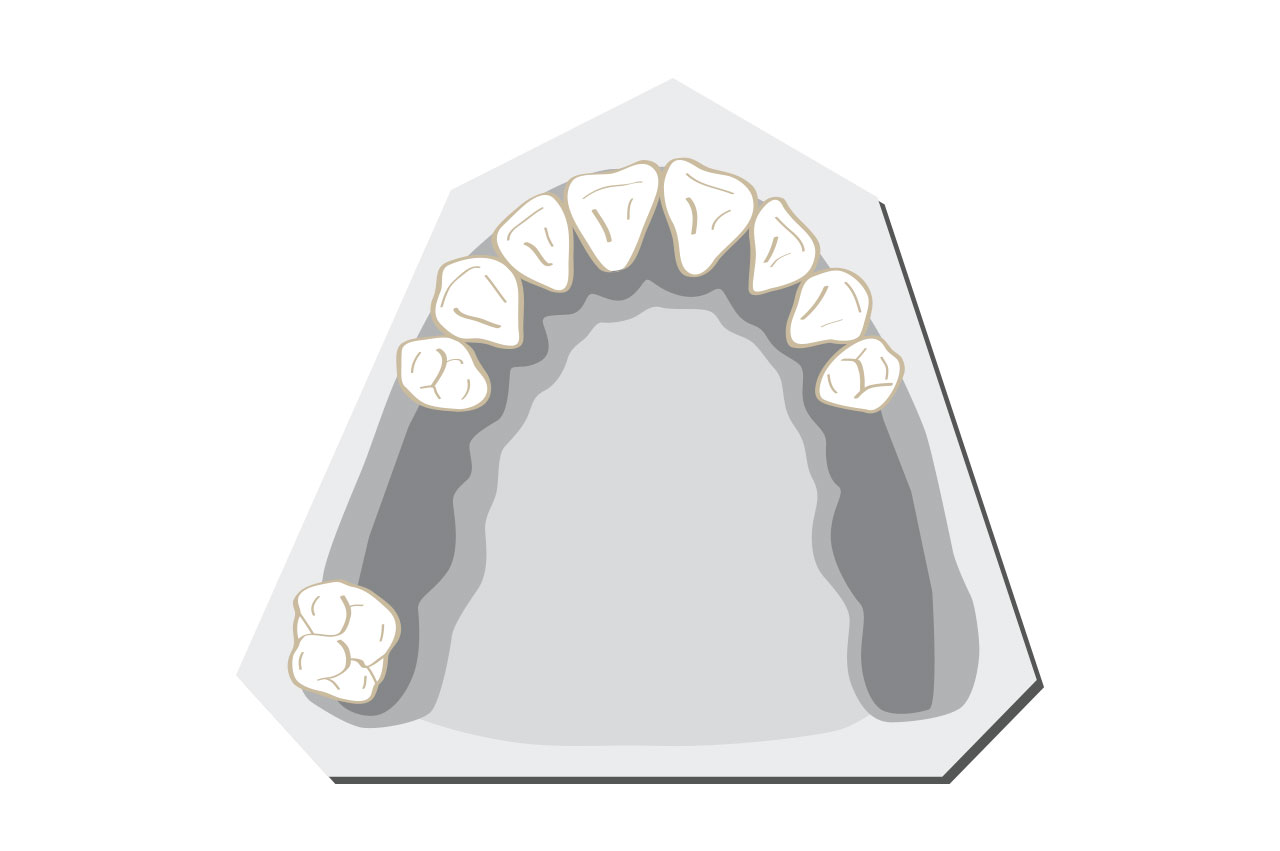

Example:

• Kennedy Class II
• Upper unilateral
• free-end saddle

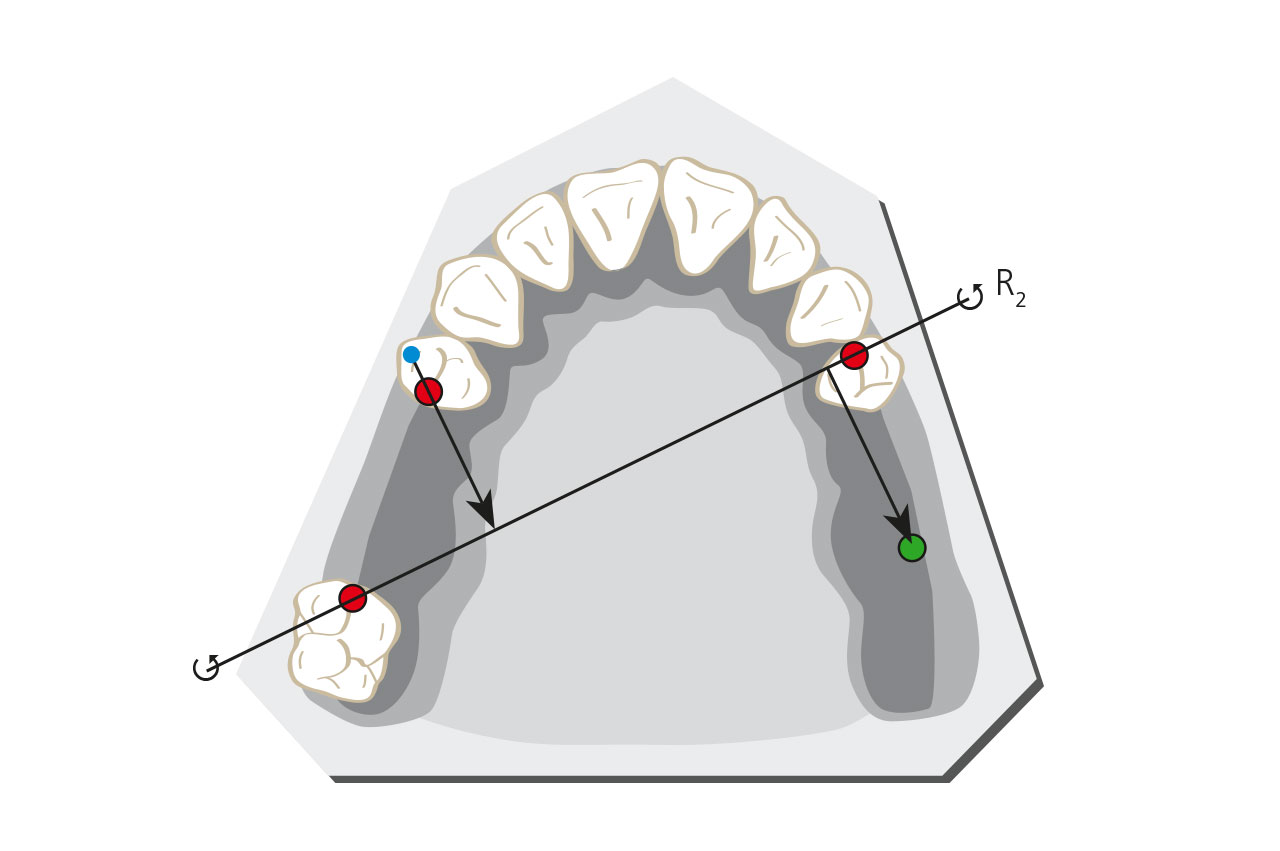

Static balance is attained by slightly reducing the load arm (e.g. by positioning the last molar out of contact). An indirect occlusal rest, away from the free-end saddle, improves the statics and prevents the premolars from tipping.

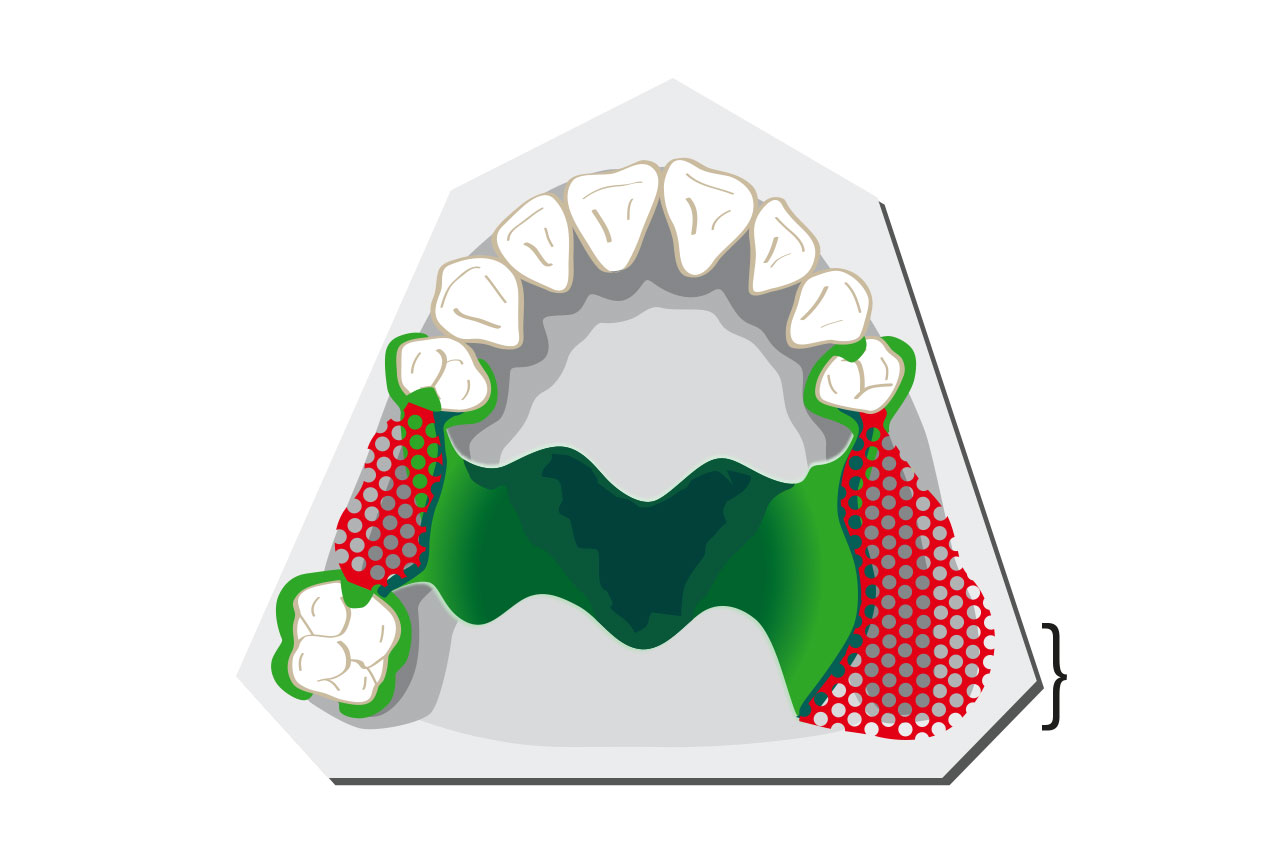

The final base design is an achievement of static balance and yet delicate, elegant design.

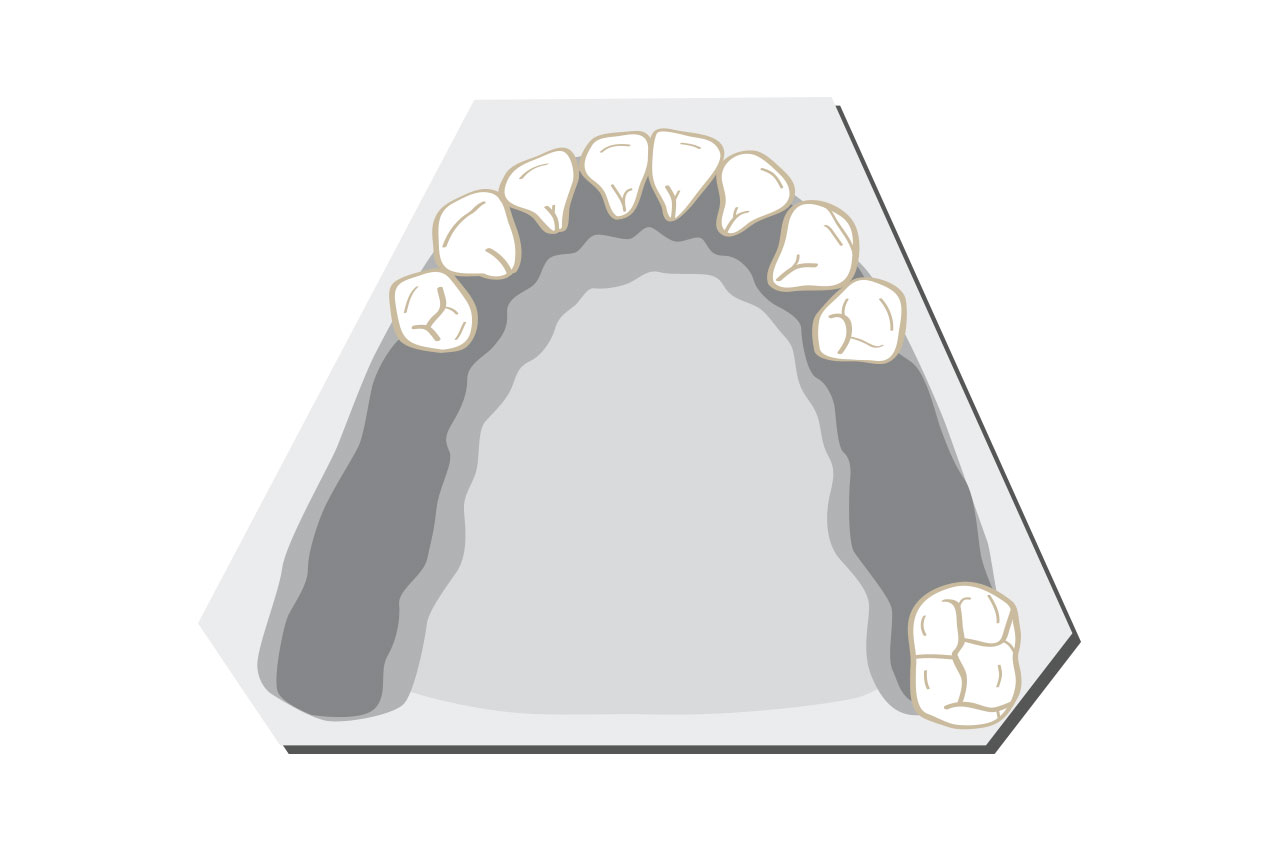

Example:

• Kennedy Class II
• Lower unilateral
• free-end saddle

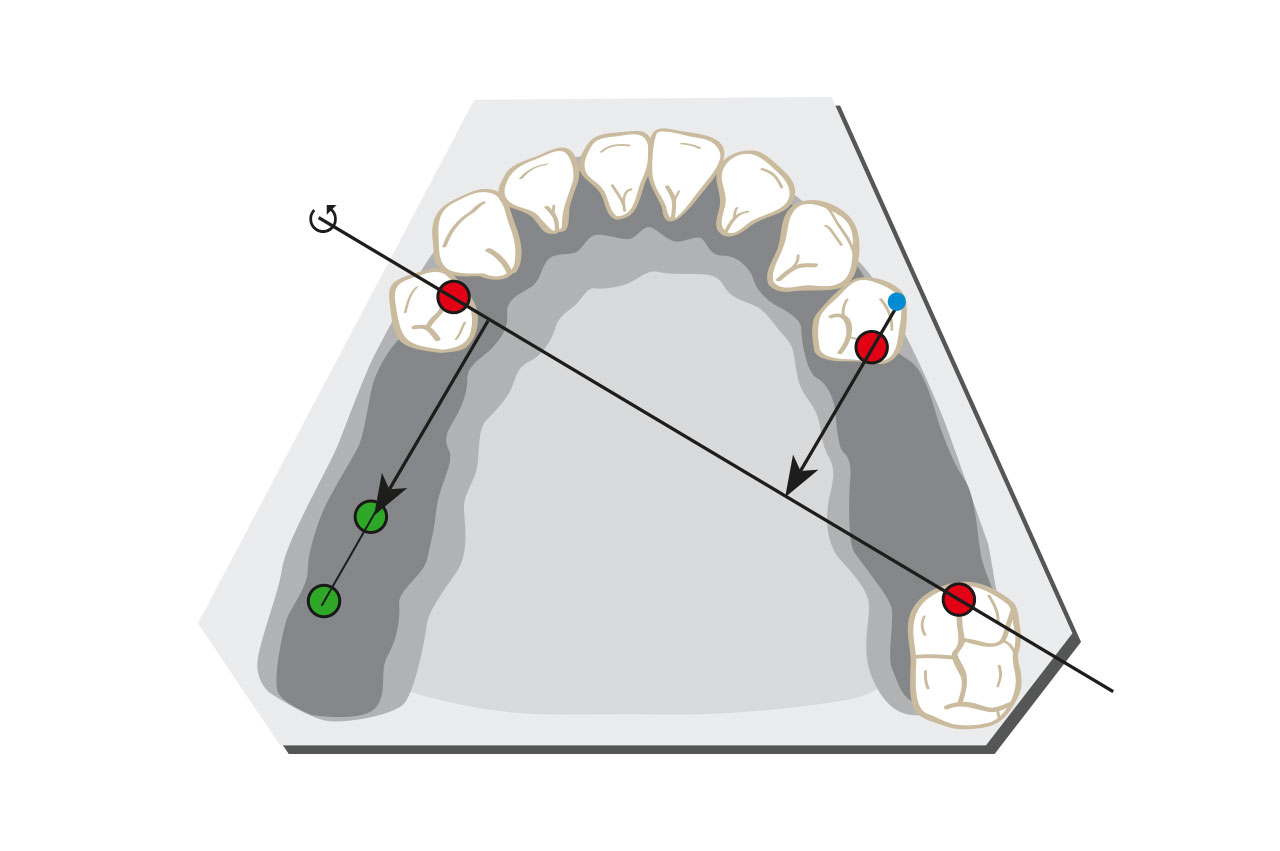

Indirect occlusal rest at free-end saddle. Direct occlusal rests at the unilateral gap.

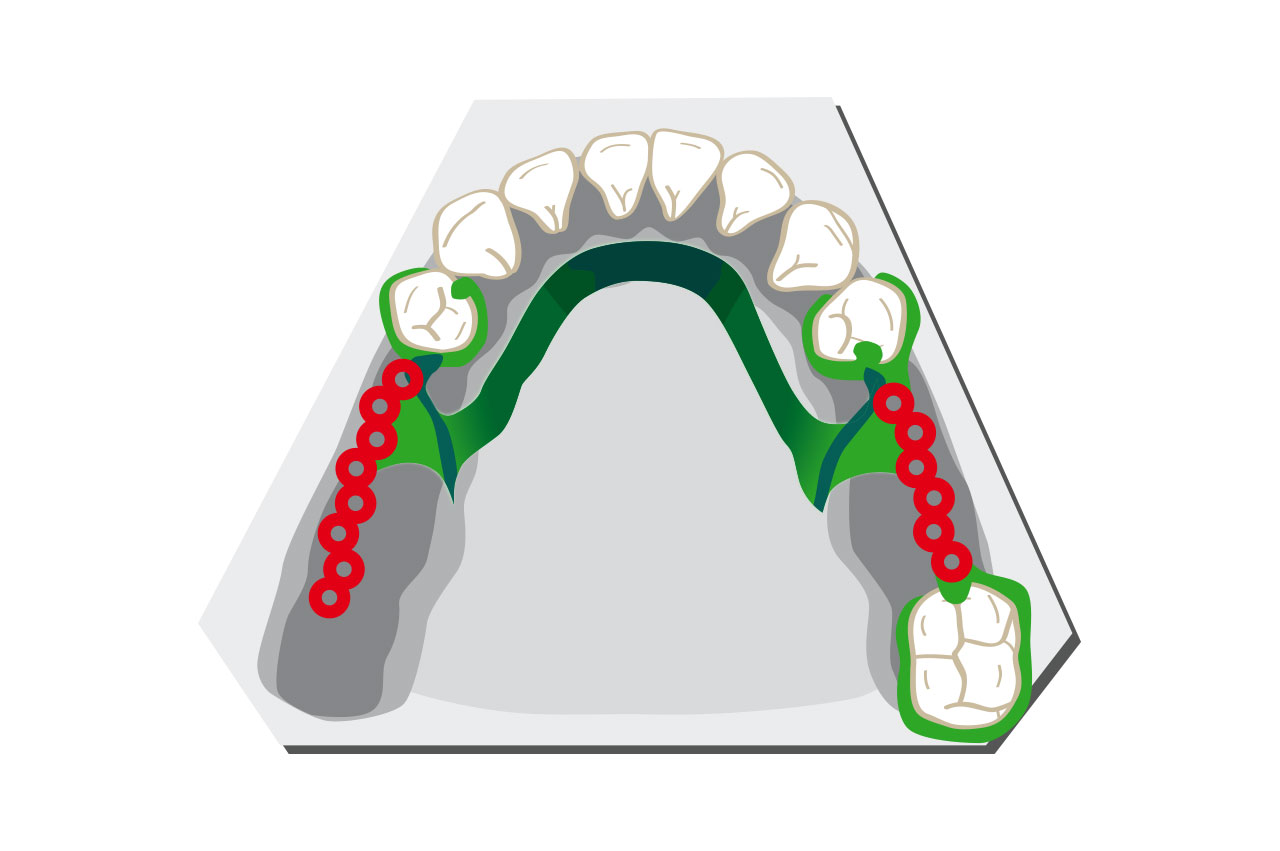

Maximum extension of the saddle zone at the free-end saddle. Strong, rigid connection at the lingual bar.
