Preparation of the model for duplication (upper and lower)

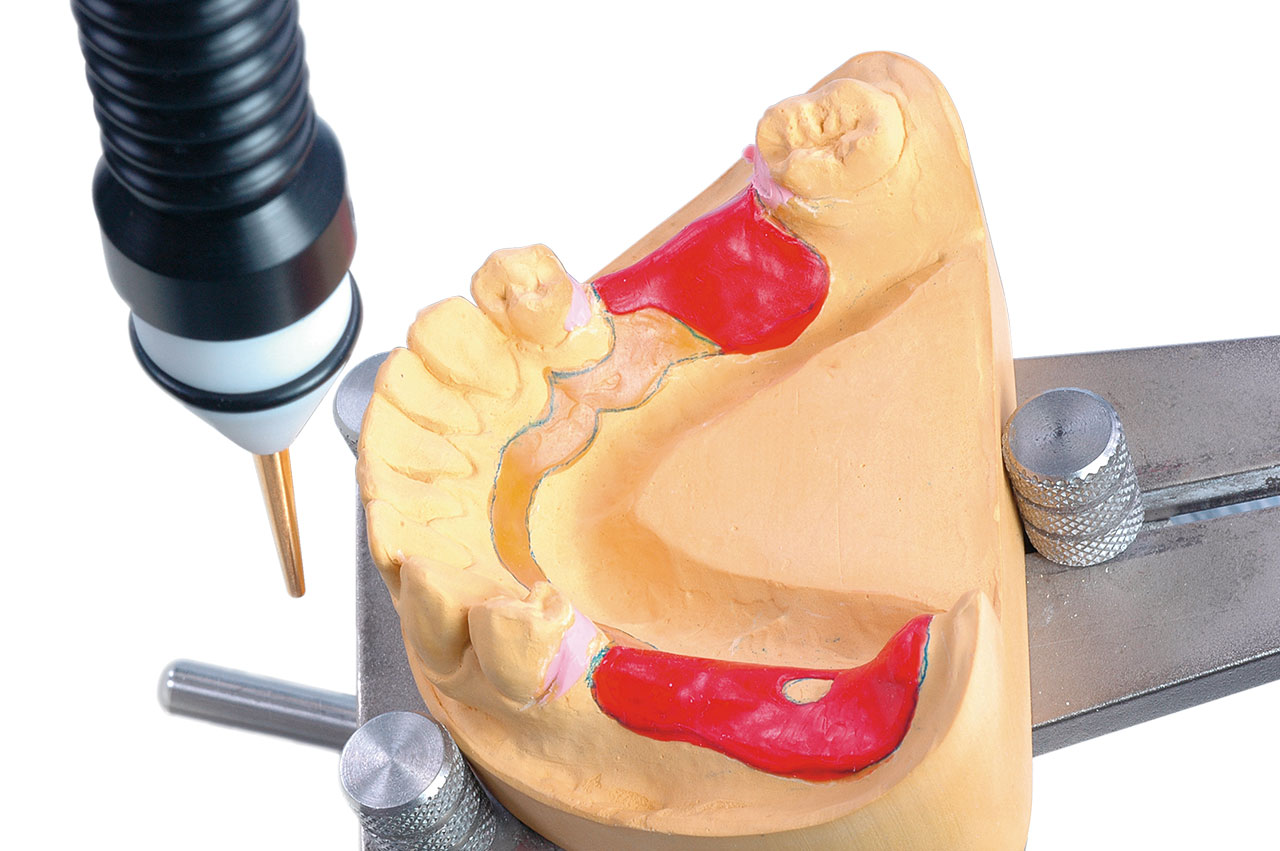

Undercuts close to the saddle are blocked-out using the thermo arm of the Paratherm surveyor.

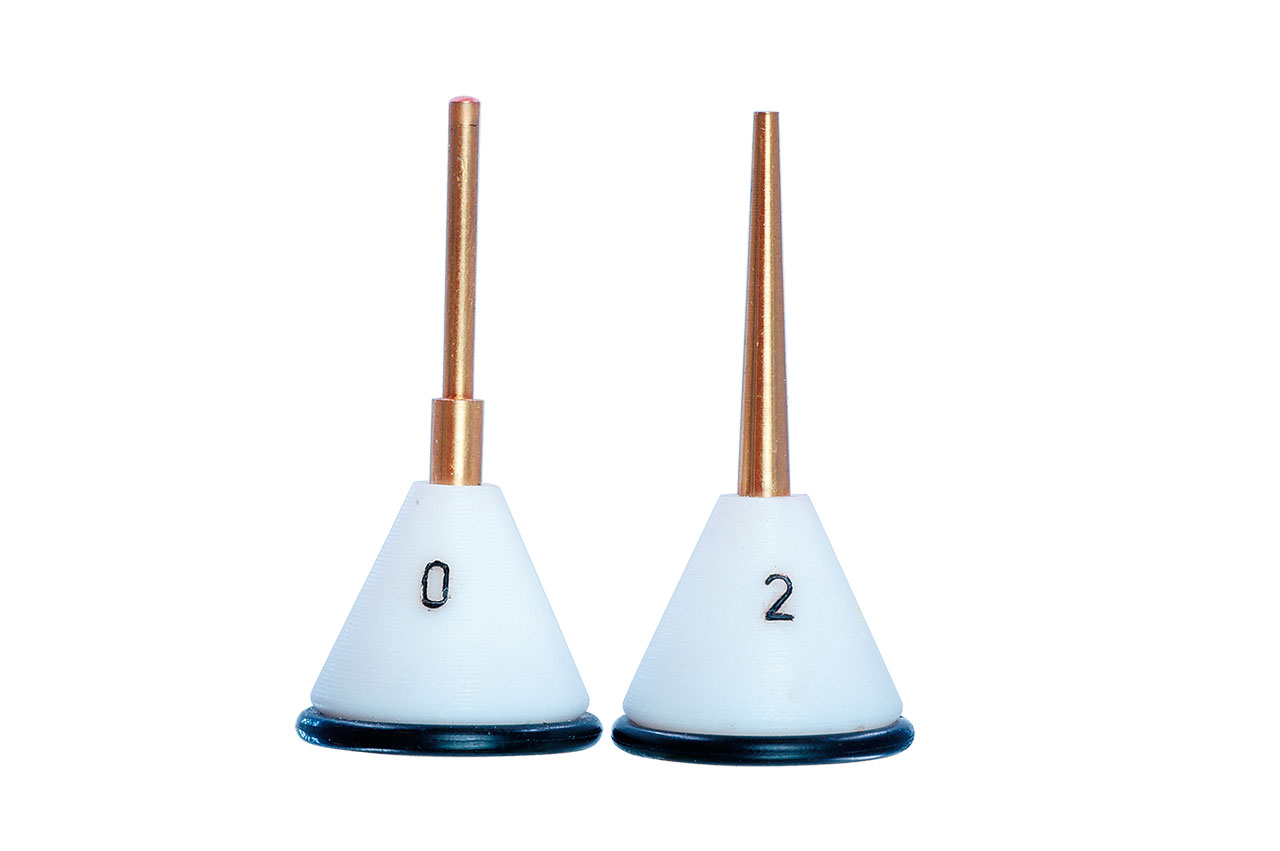

If the undercuts are blocked-out using the 2° conical rods, the patient will find it easier to insert the denture later on.

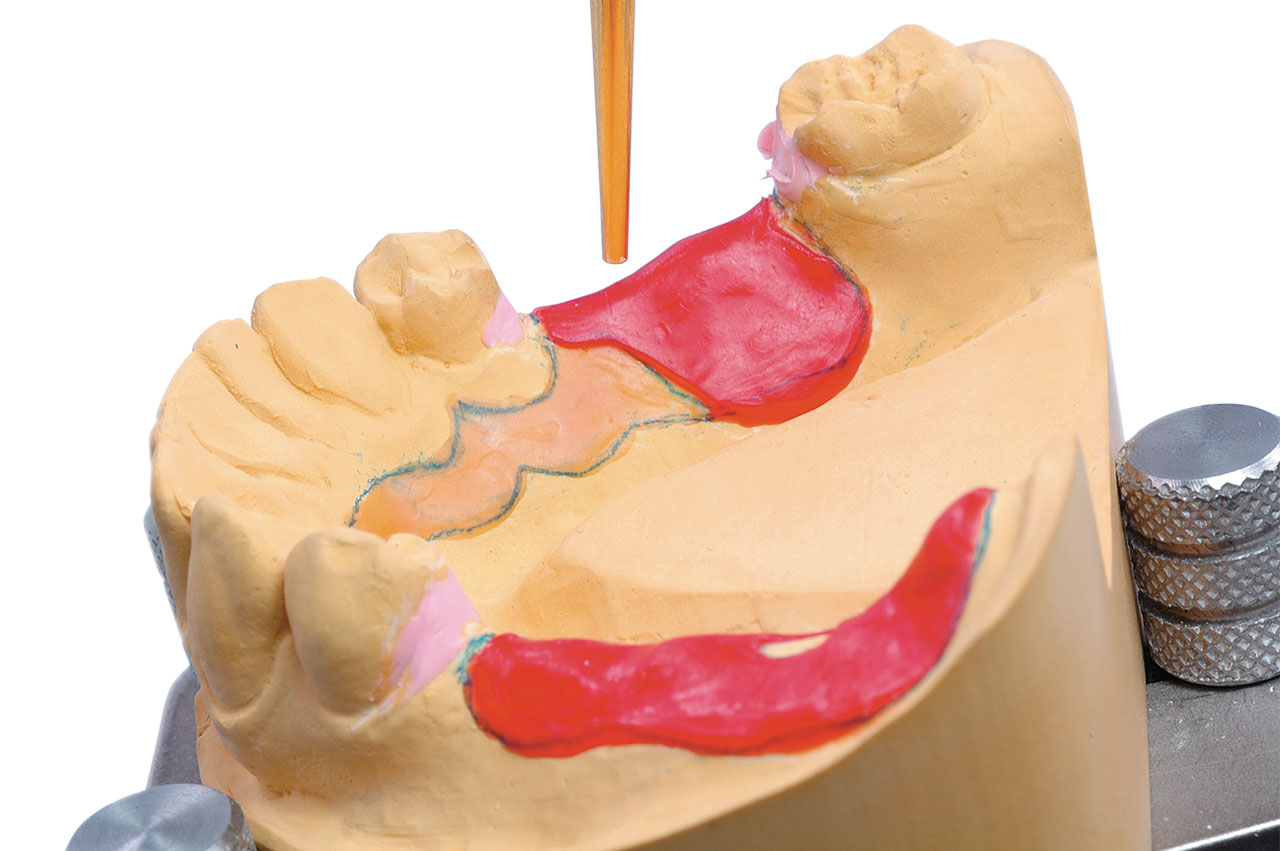

After the path of insertion has been determined, the undercuts blocked-out and the insertion groove is in place, the model can be removed from the model table.

After the path of insertion has been determined, the undercuts blocked-out and the insertion groove is in place, the model can be removed from the model table.

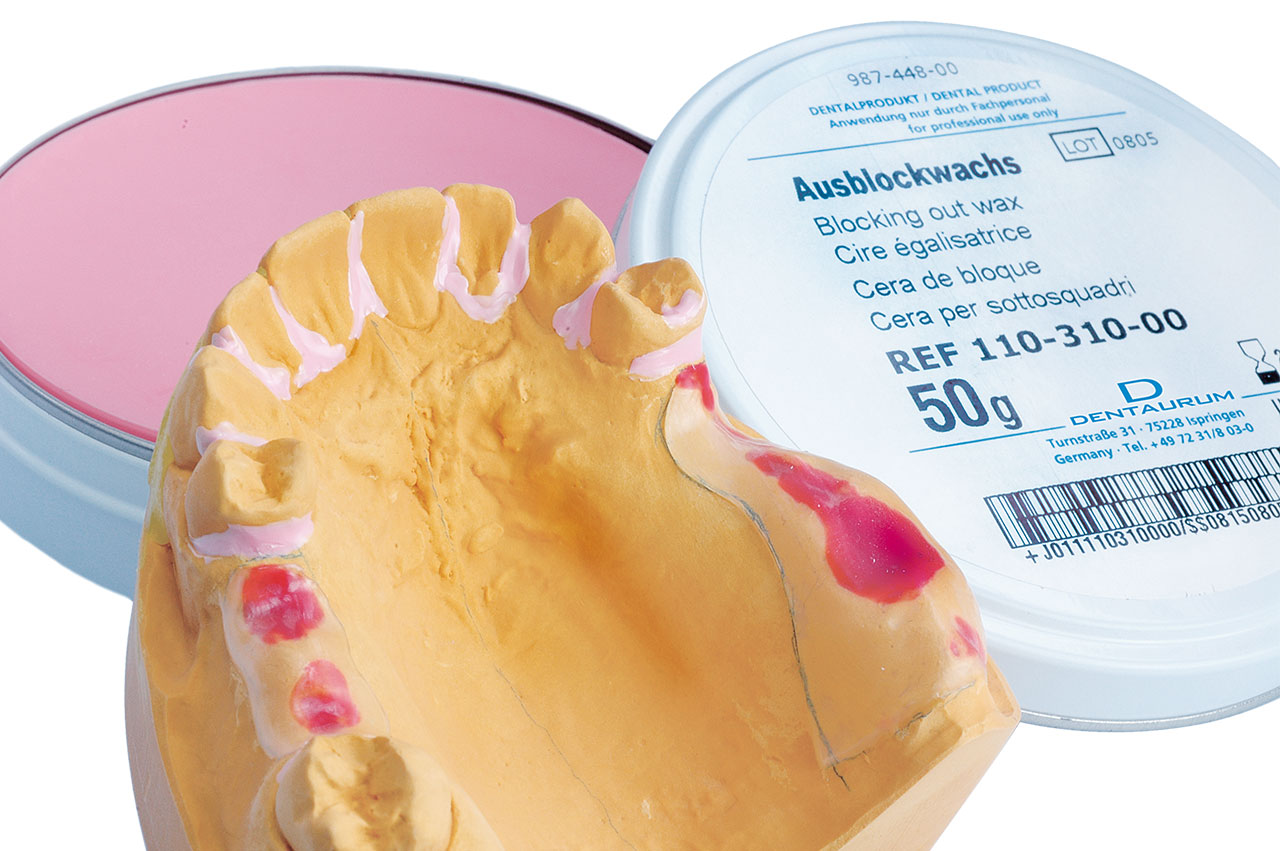

If necessary, further undercuts can be filled using the blocking-out wax.

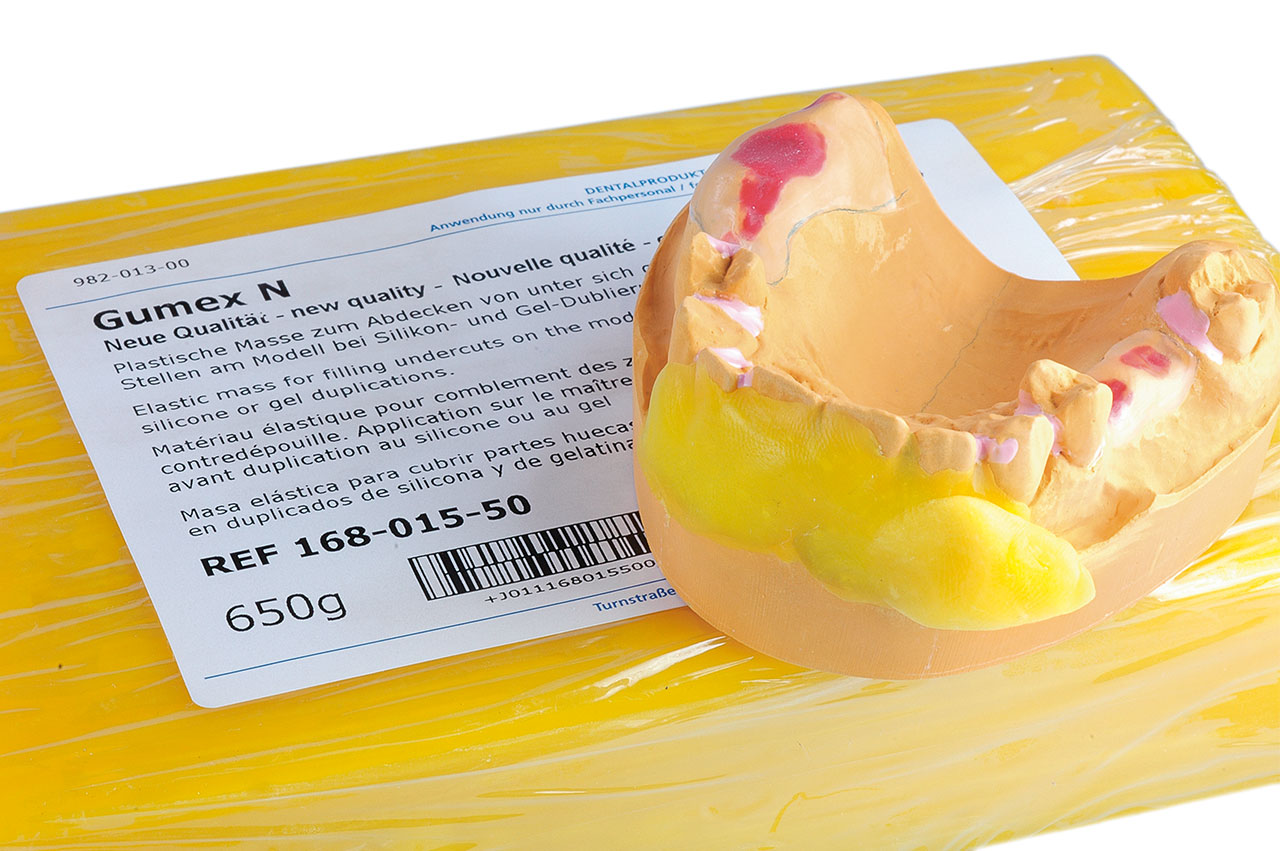

Deeper areas such as the vestibular fold can be blocked-out using Gumex N, an elastic mass for filling deep undercuts.
