Statics - The fundamental principles

Example:

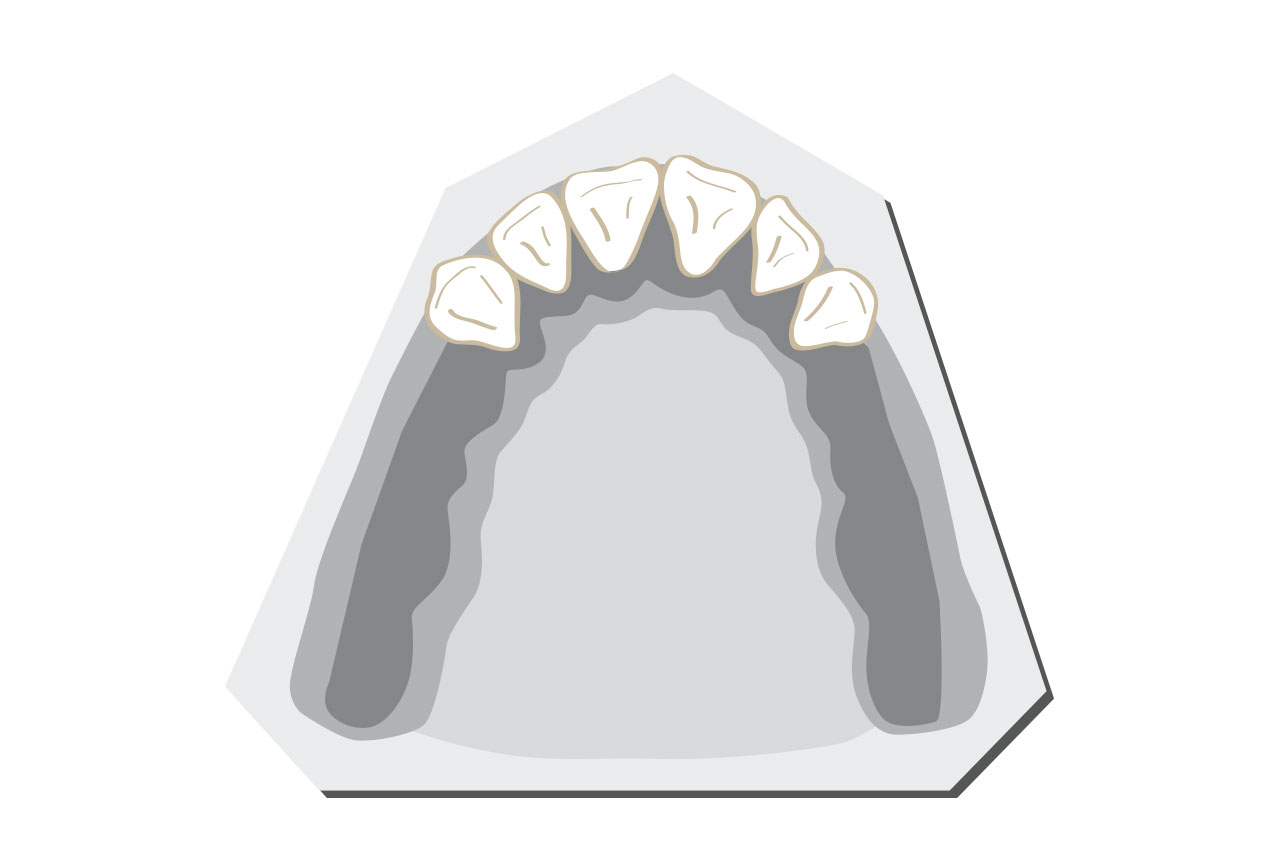

• Kennedy Class I
• bilateral, free-end saddle

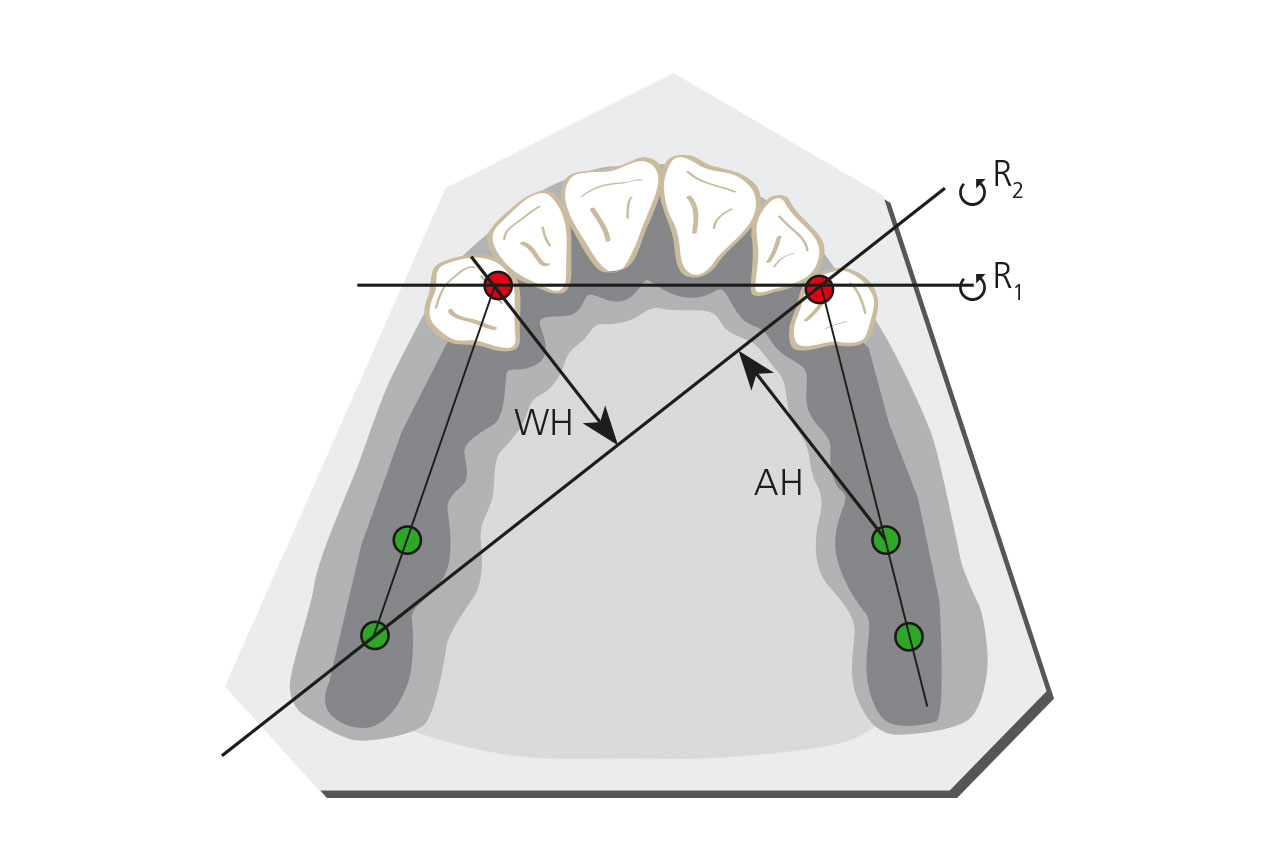

In this case it is not possible to achieve an ideal static solution. The same procedure: Indirect occlusal support

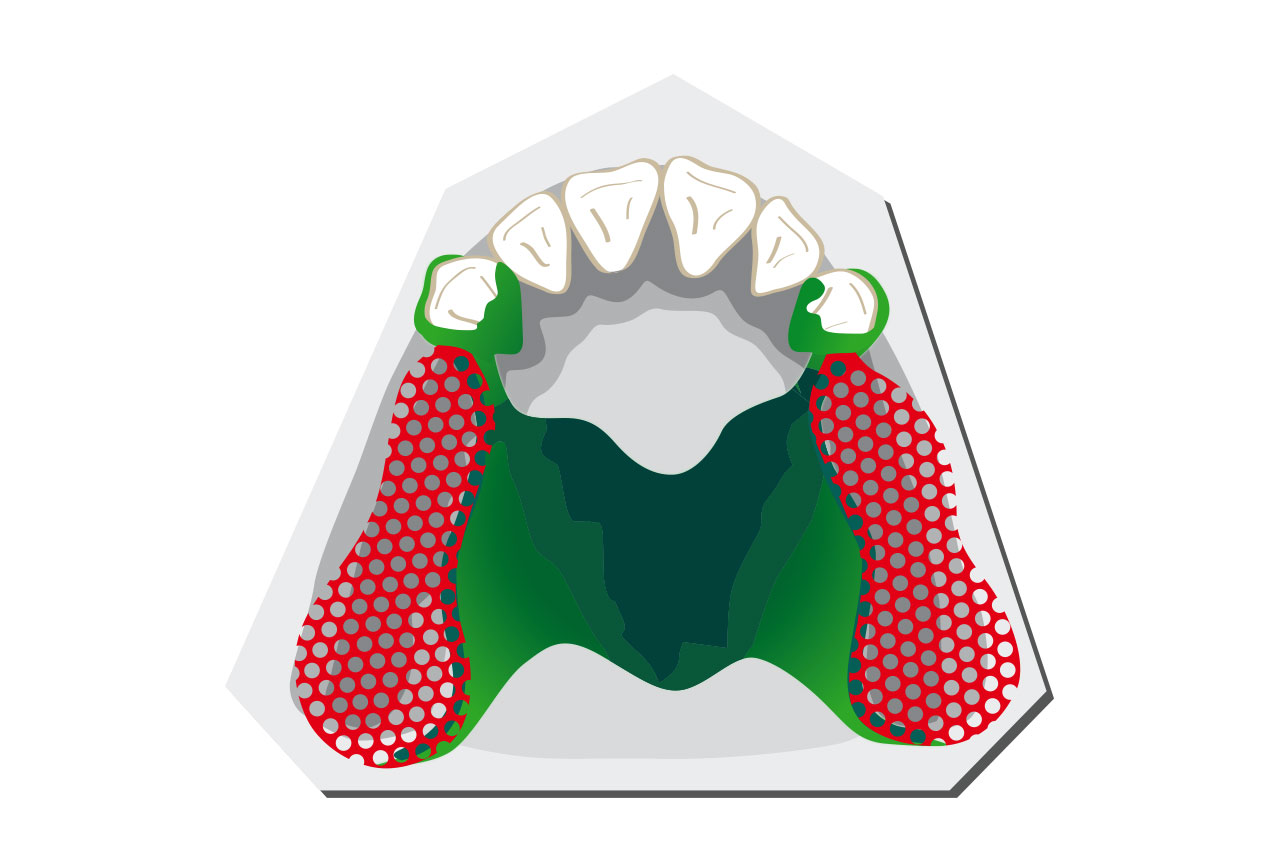

Wide transverse connector. Maximum extension of the saddles.

Example:

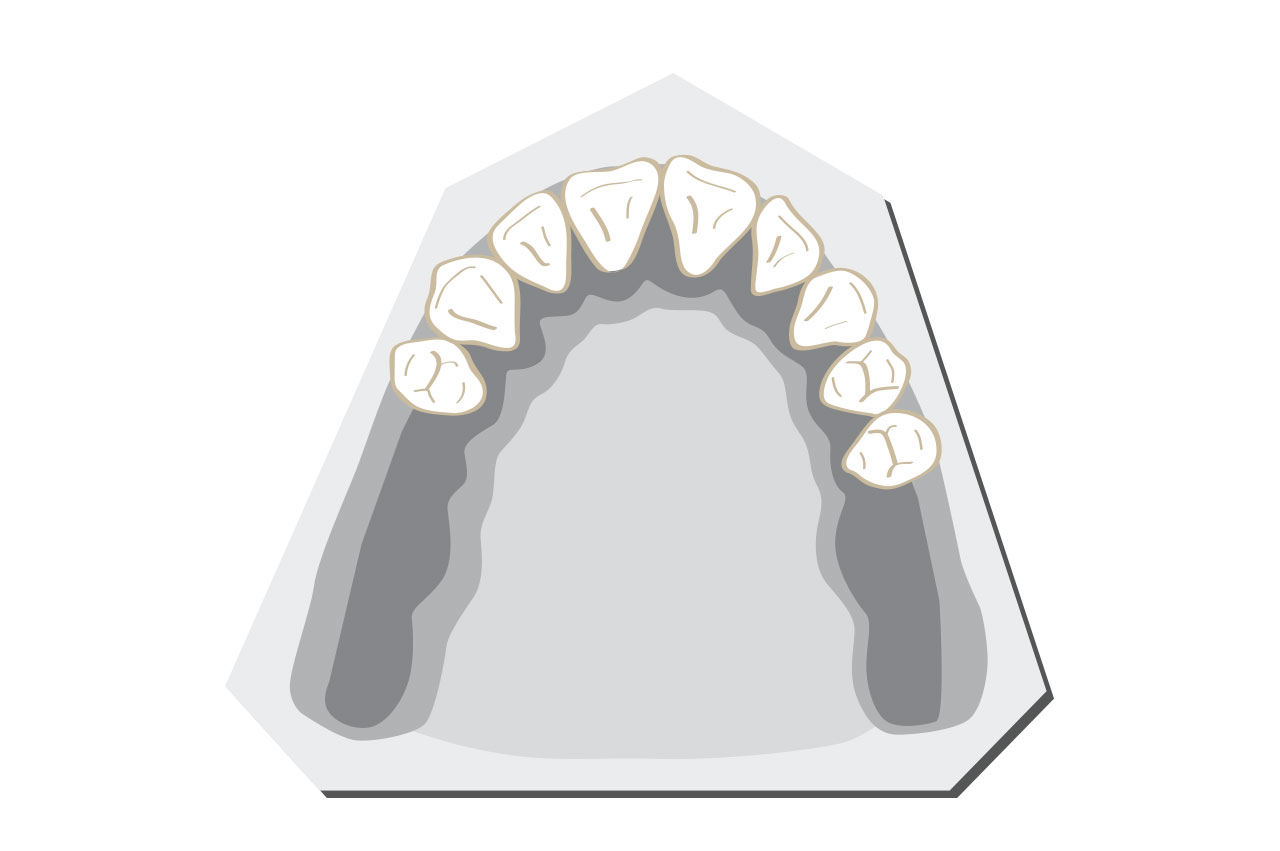

• Kennedy Class I
• bilateral, free-end saddle

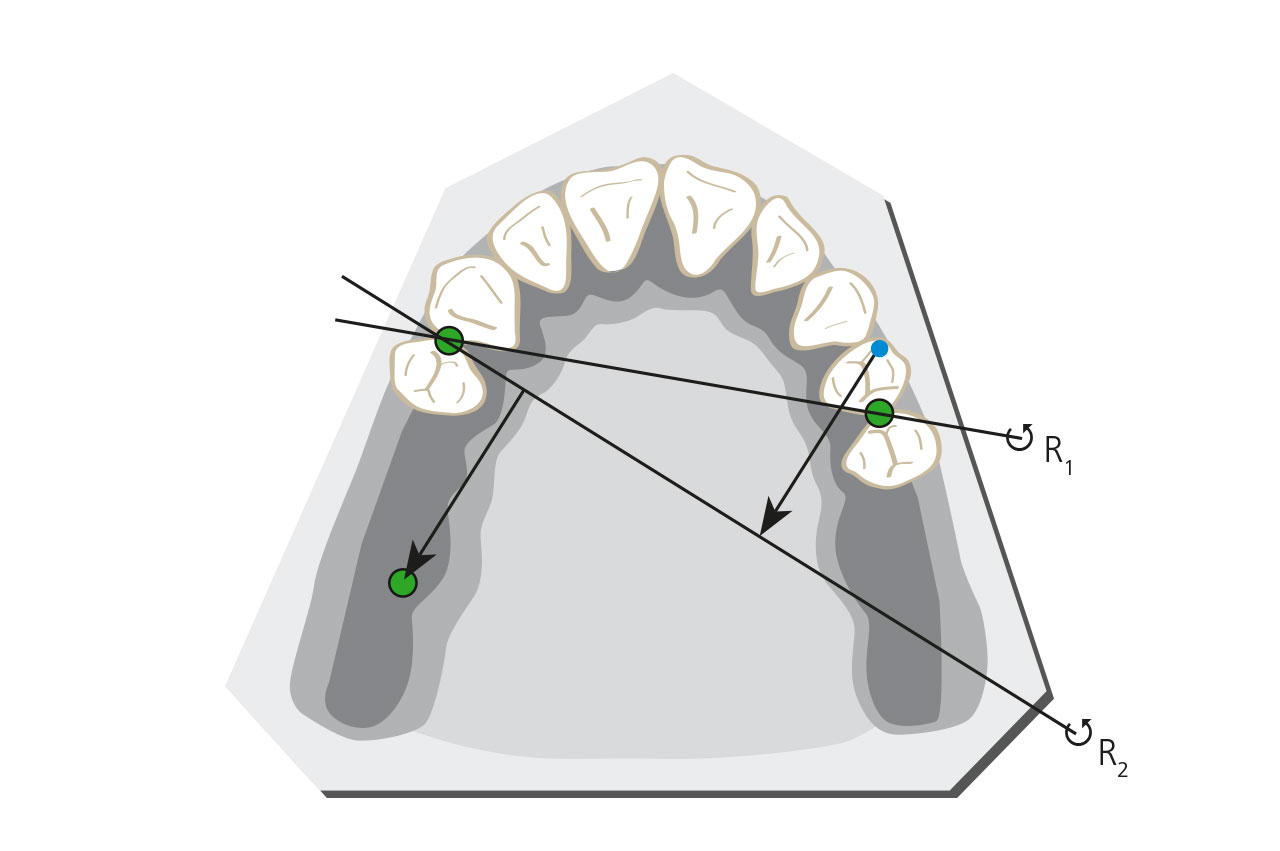

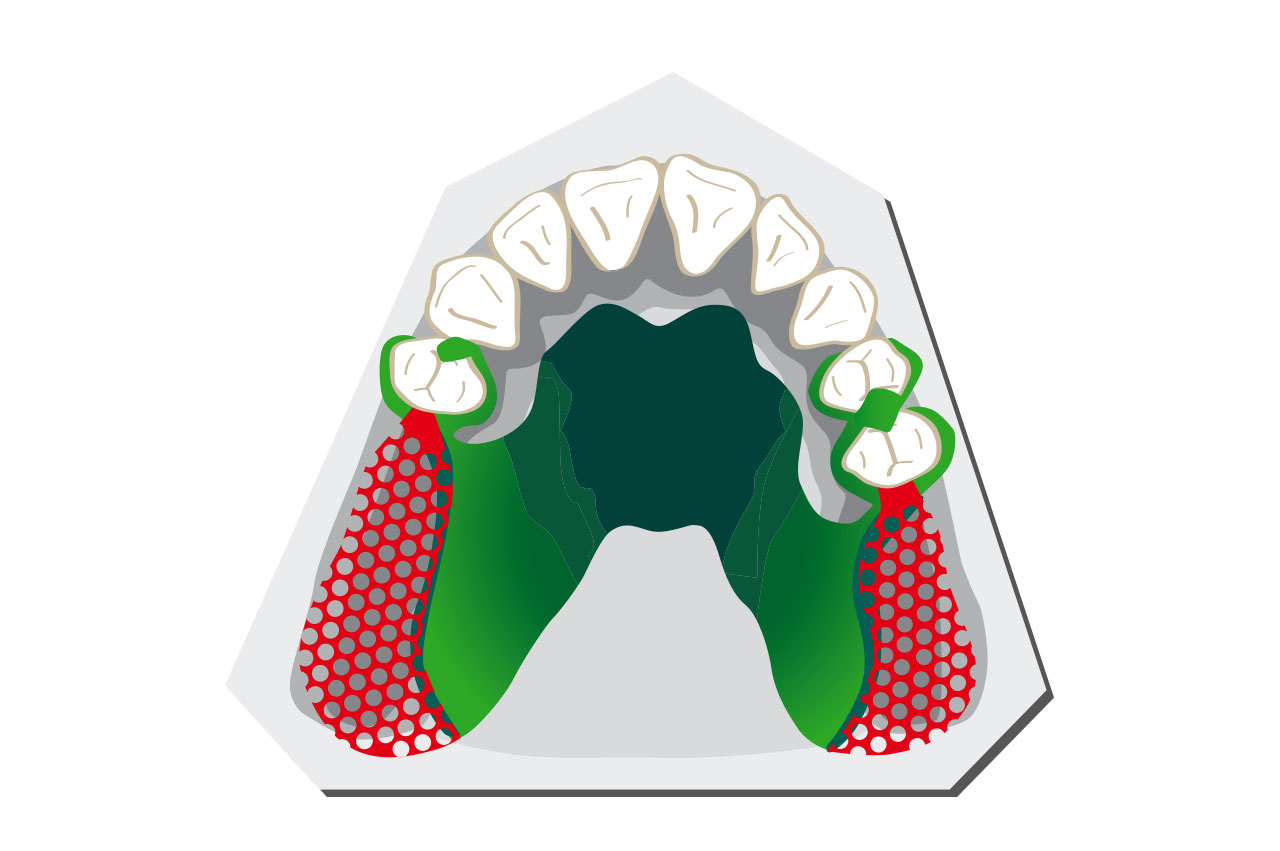

In this case, a slightly better static solution is possible. Rotation angle R2 across the tuberosity, the saddle area is extended generously.

The denture base can be constructed in a slightly more delicate design.
