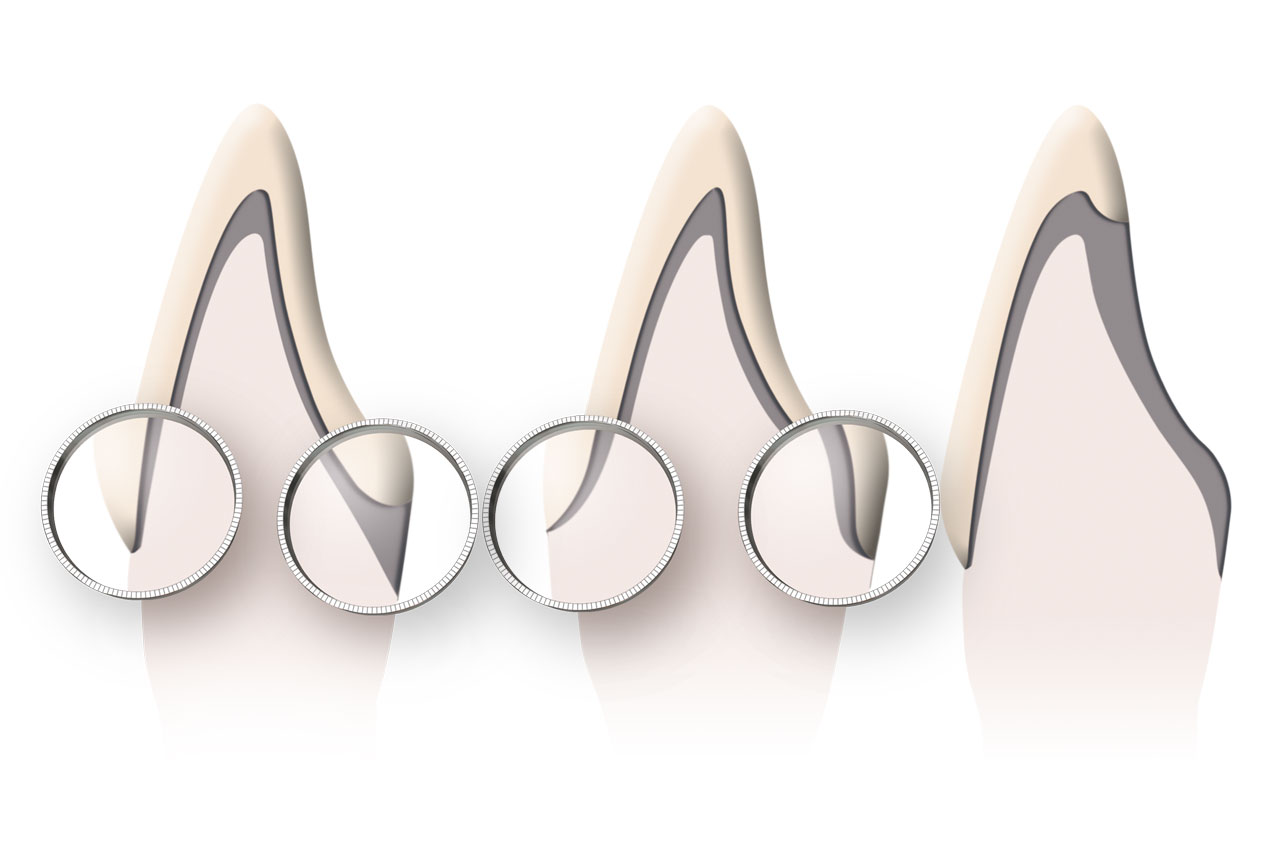

Different Frameworks

Determine the amount of metal required according to the type of preparation, bite ratio and patient requests.

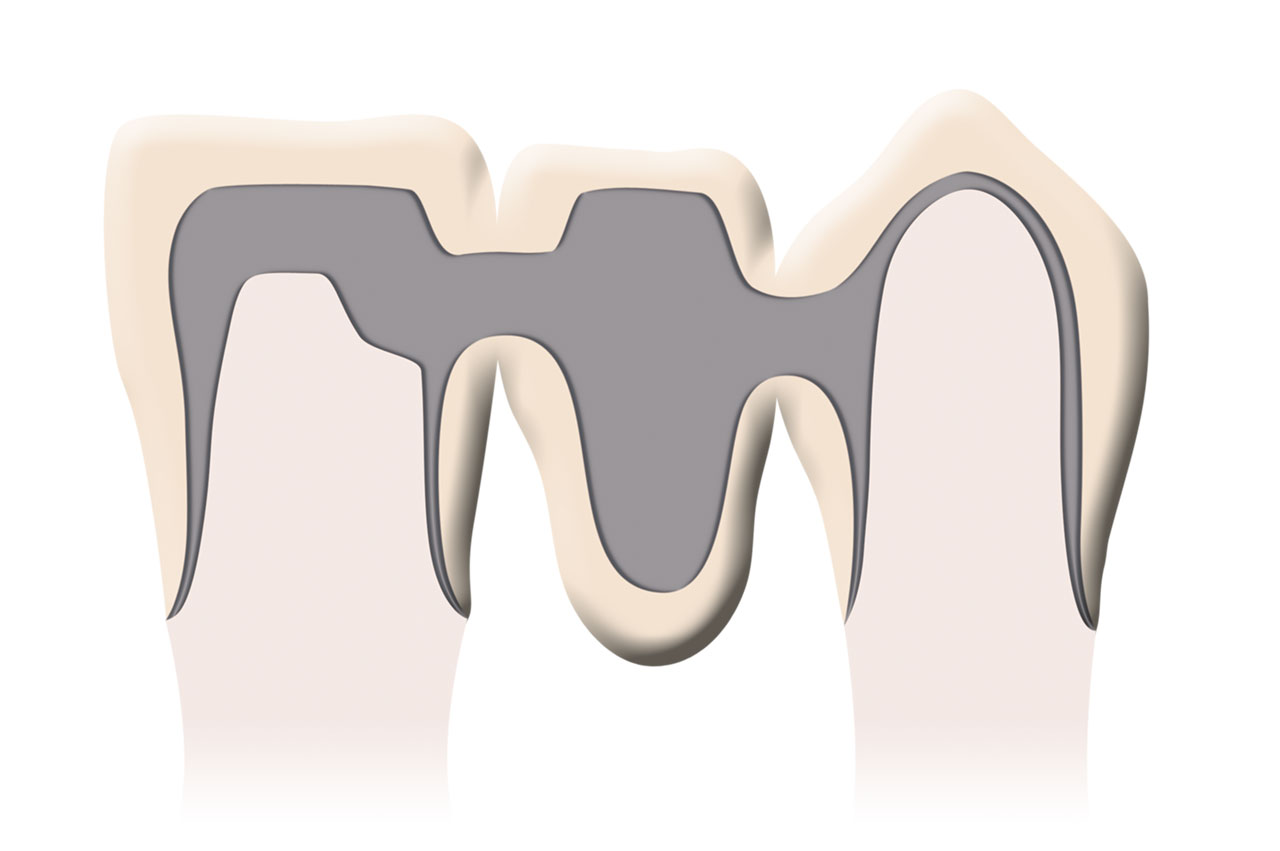

Framework design for the ceramic build-up

• Rounded connections
• Add on to compensate for excess space (max. 2 mm ceramic thickness)

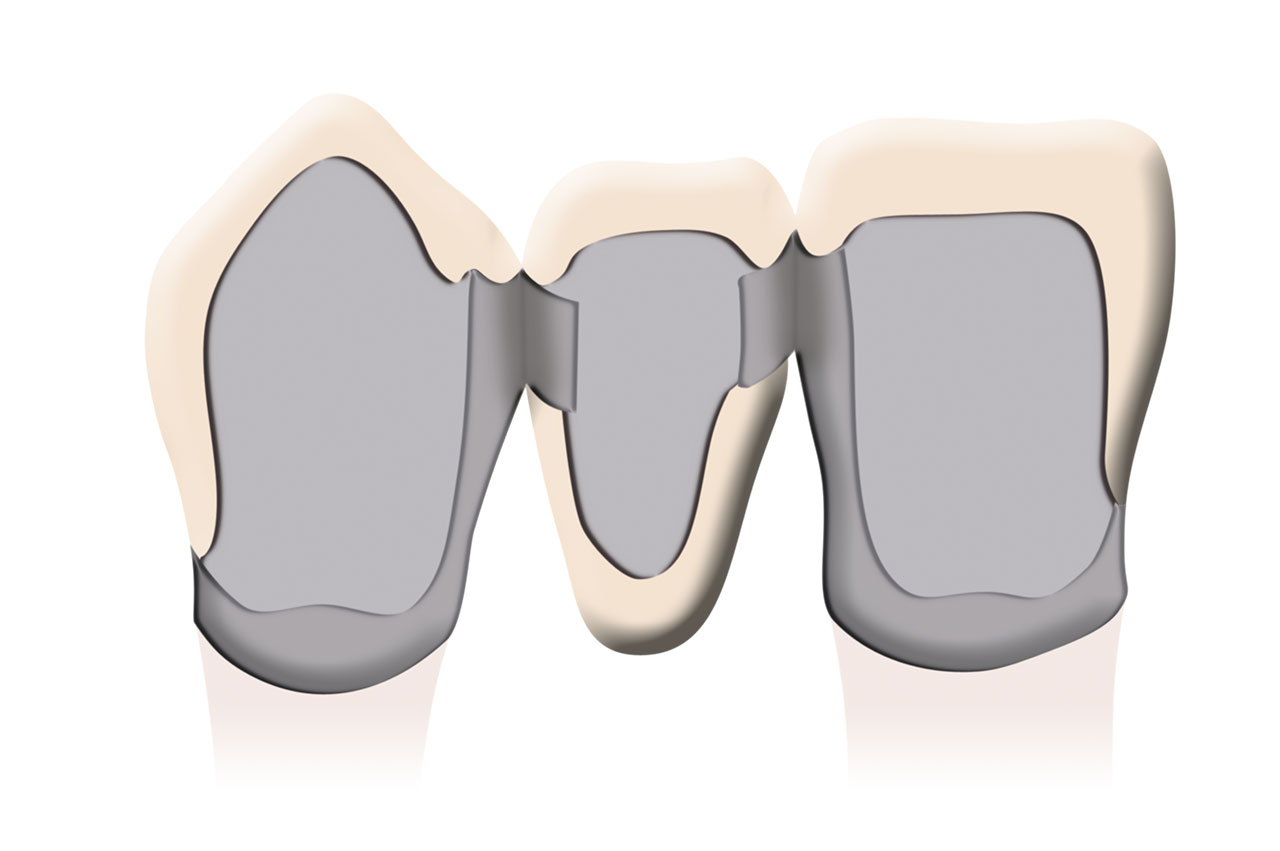

Palatinal metal collar for:

• Exact marginal edge
• Stabilization of the framework
• Interdental - vestibular separation possibility
• Heat diversion during ceramic firing

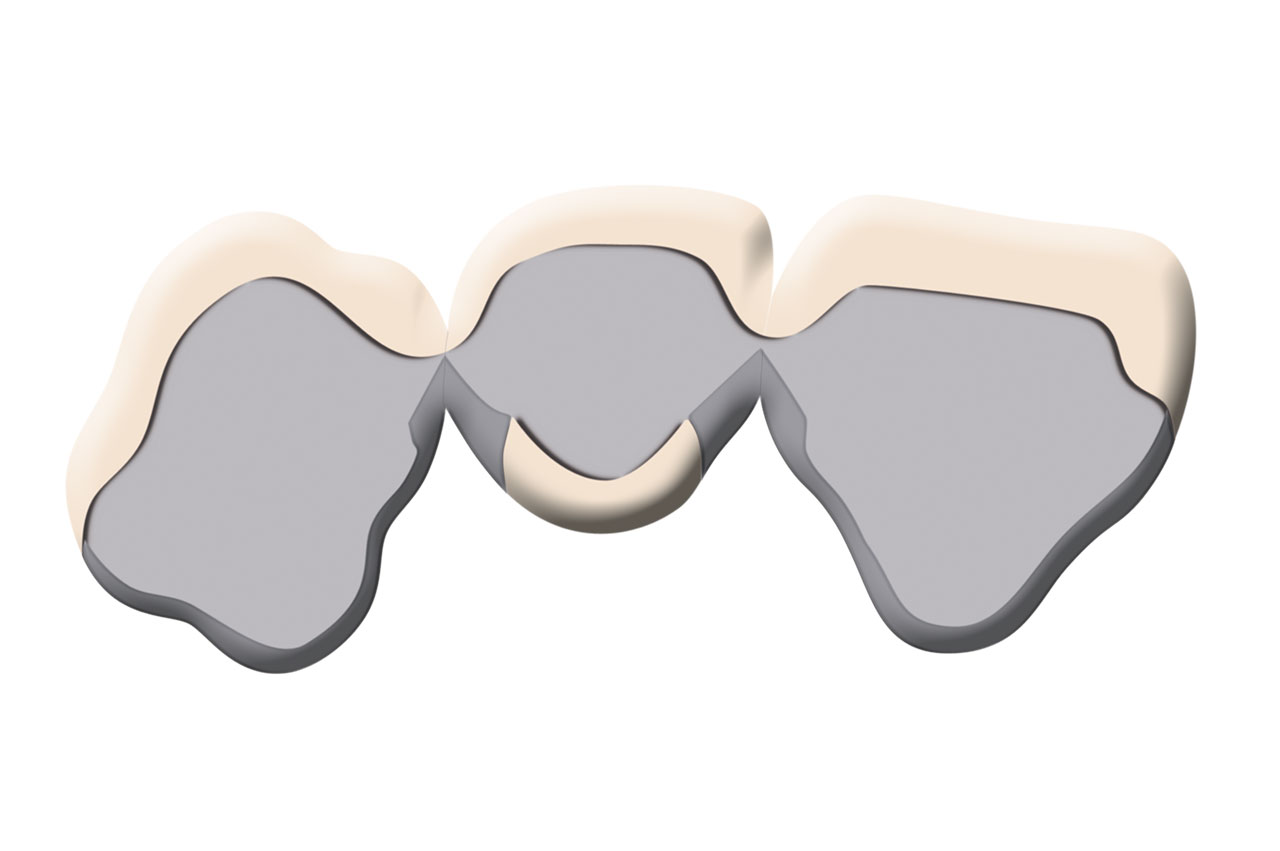

Rounded edges and connections.

Designing the connections

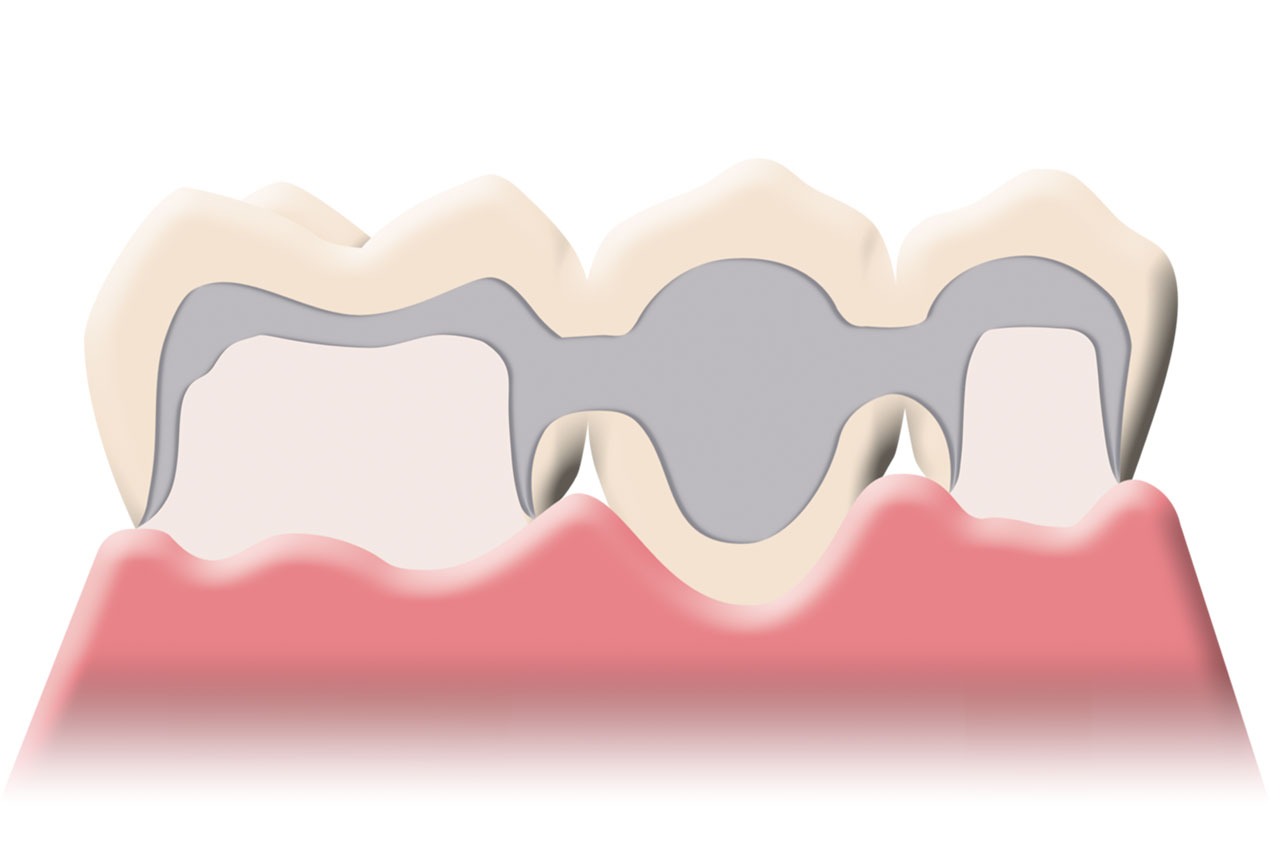

The metal framework should be of anatomical tooth shape in a reduced form.

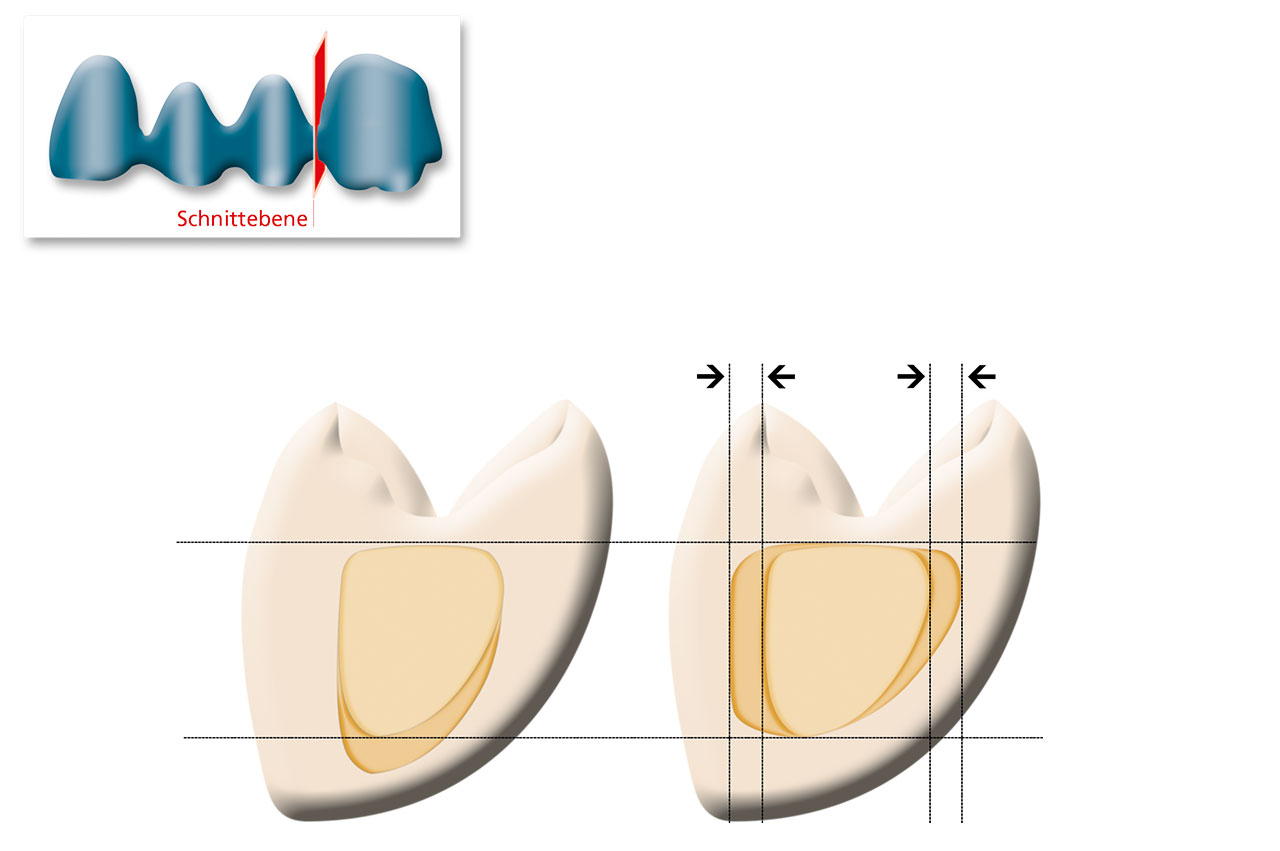

There is greater stability when the size of the connection is increased in a vertical direction instead of horizontally.

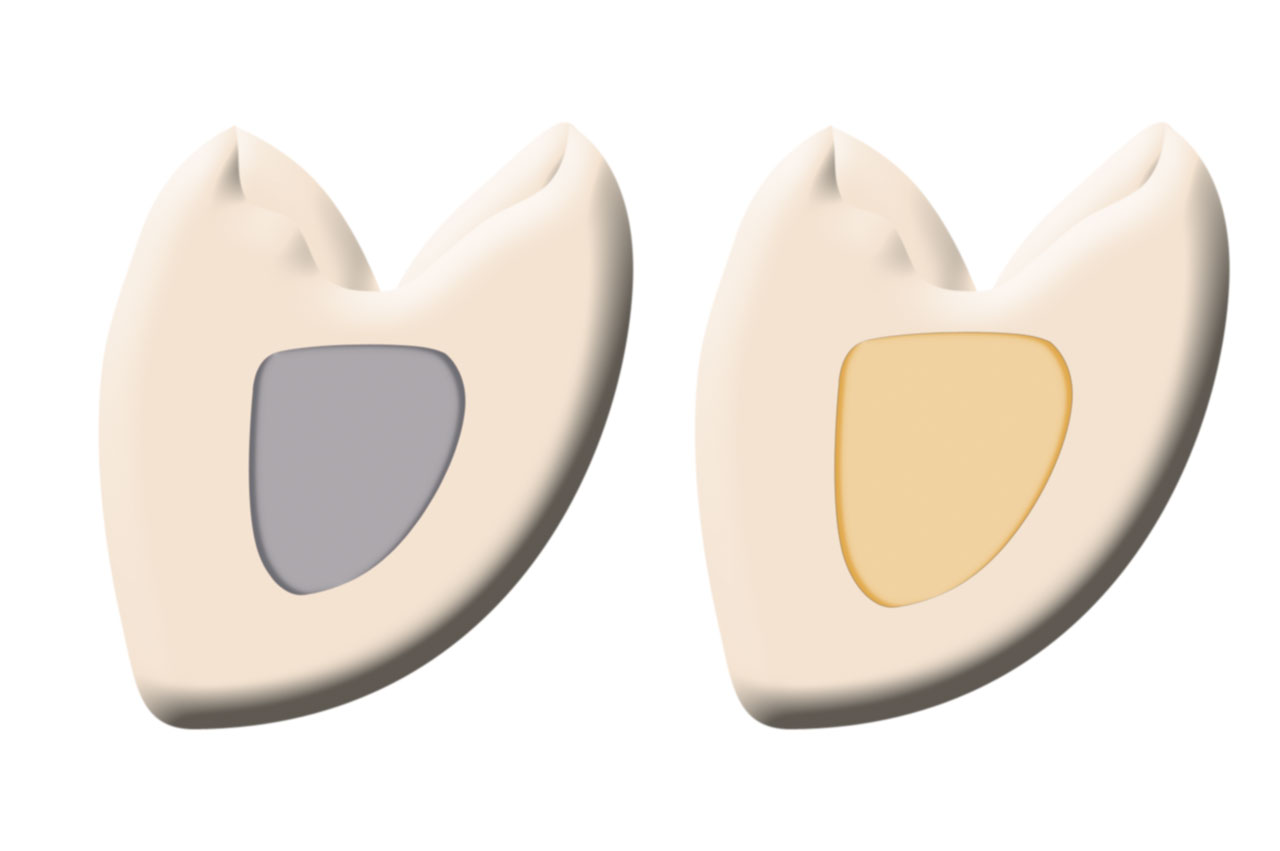

Both the cross section of the connection and the coping thickness requirements are approx. 25% less for remanium^® alloys than for precious metal alloys.

Bridge wax-up

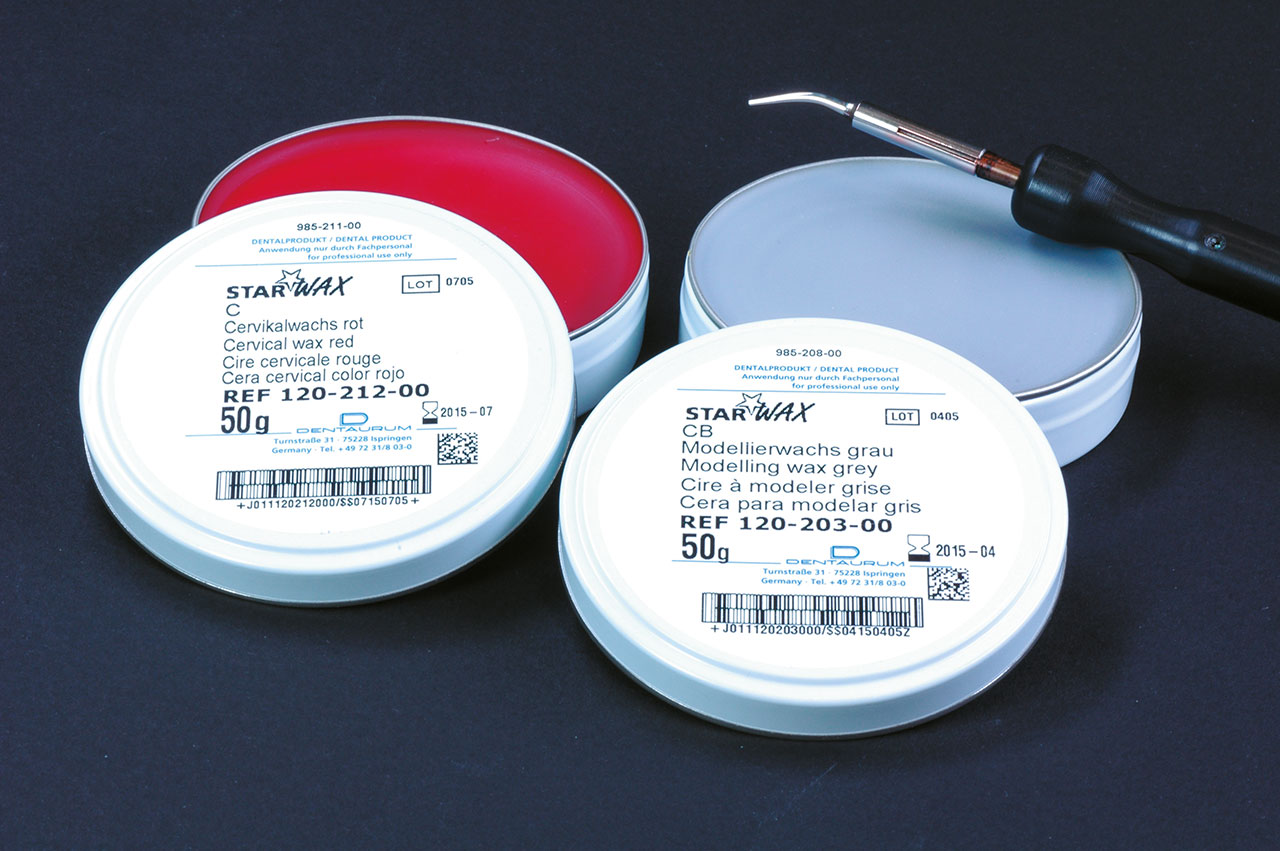

Star Waxes enable easy wax-ups and provide a high degree of accuracy.
