Fabricating the resin lock

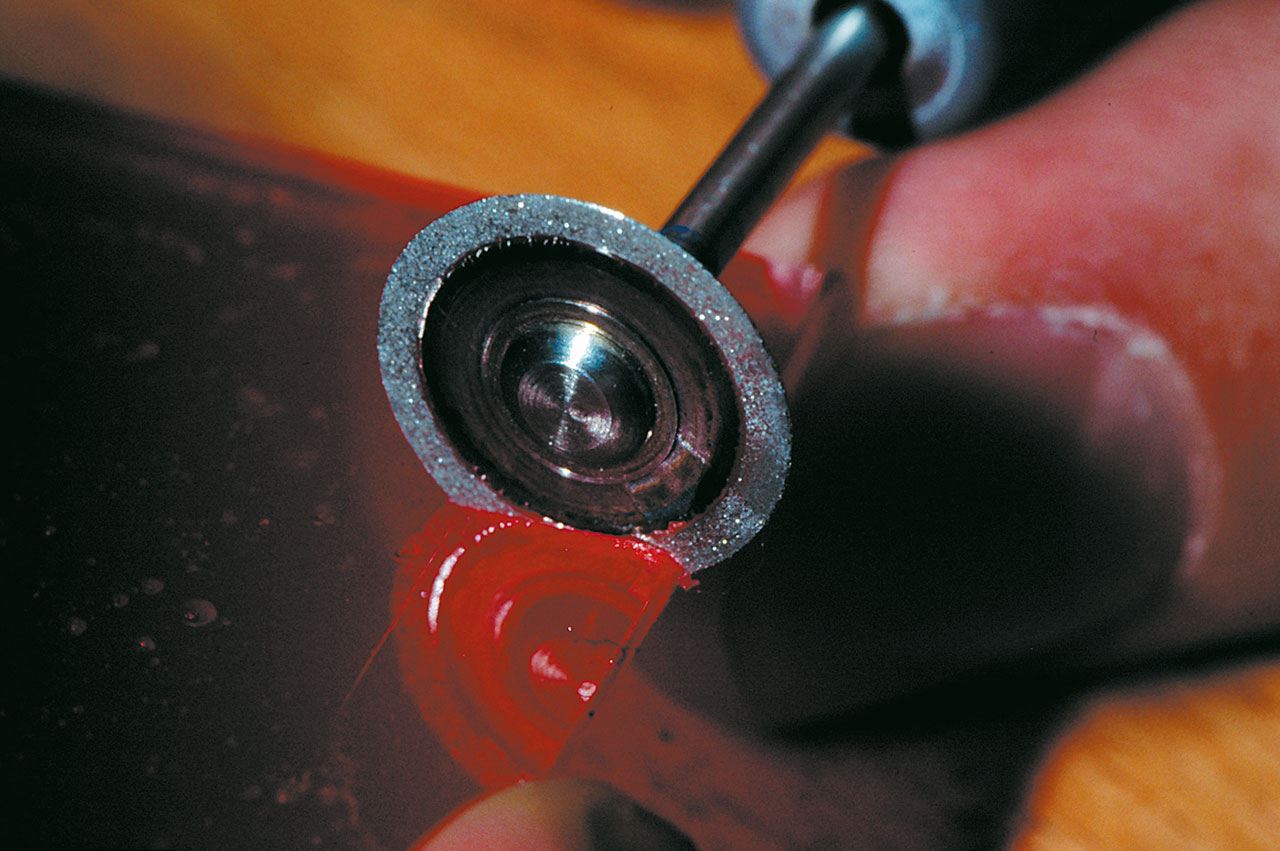

The cutting of an acrylic blade according to the lock size.

The lock template for the planning of the lock size.

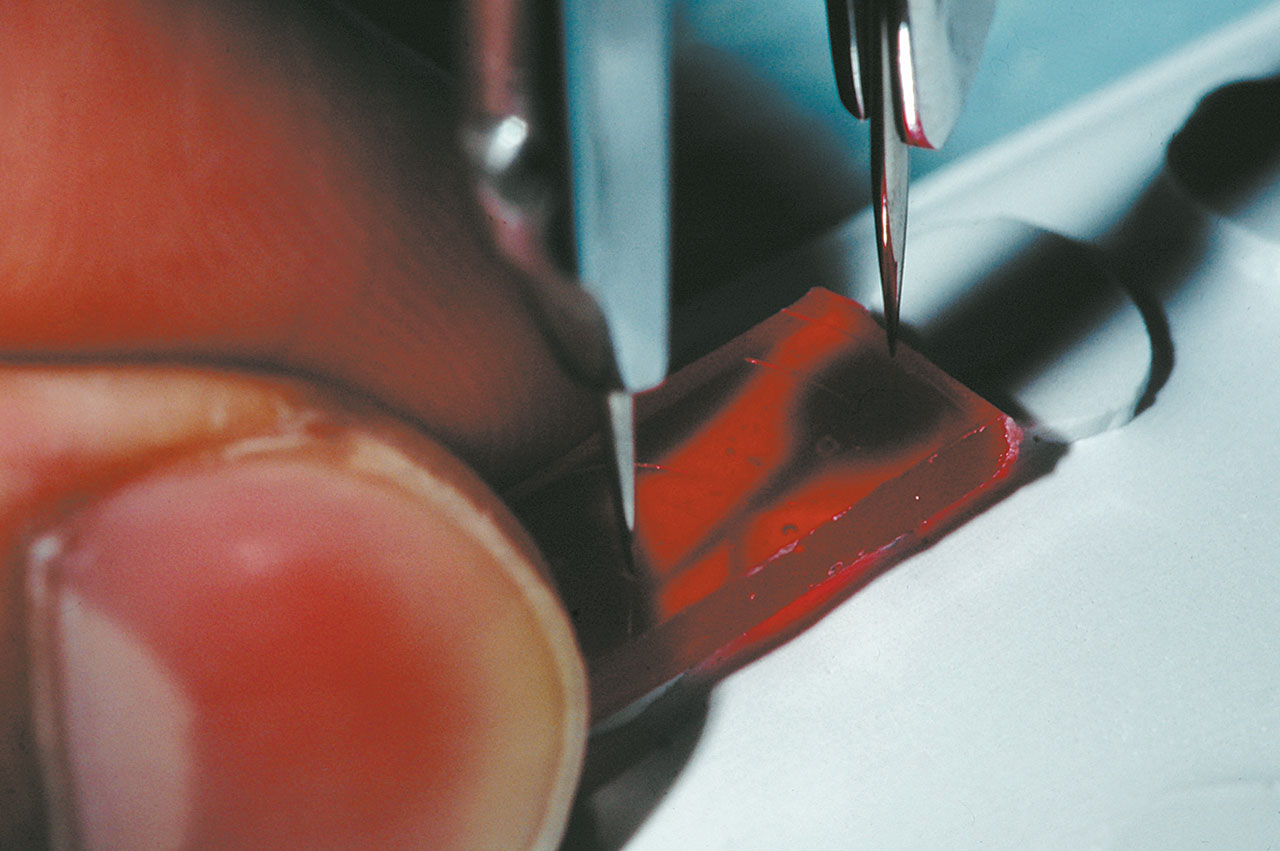

The scratching of the radii r1 and r2 with dividers for the planned rotation of the lock blade and the lock nose.

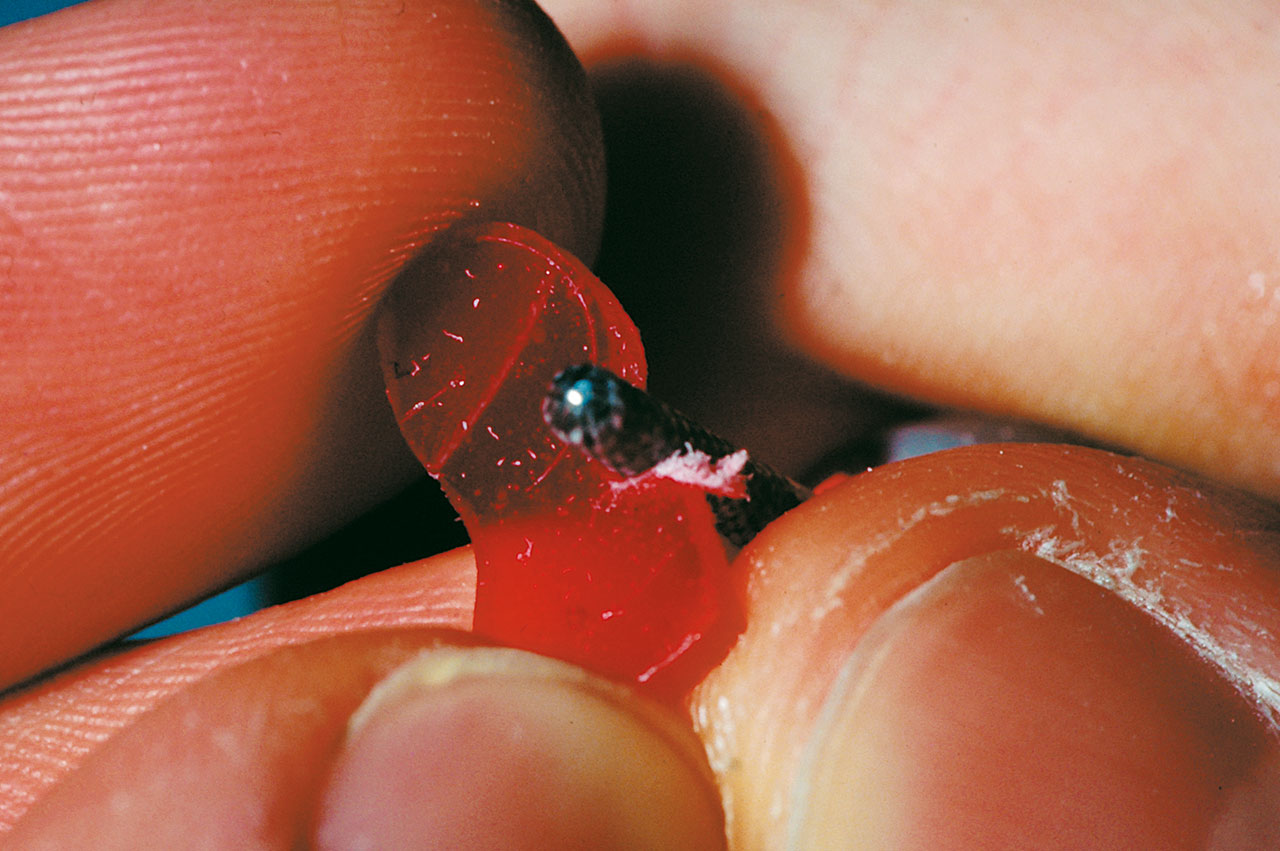

The processing of the rough lock with a TC cutter.

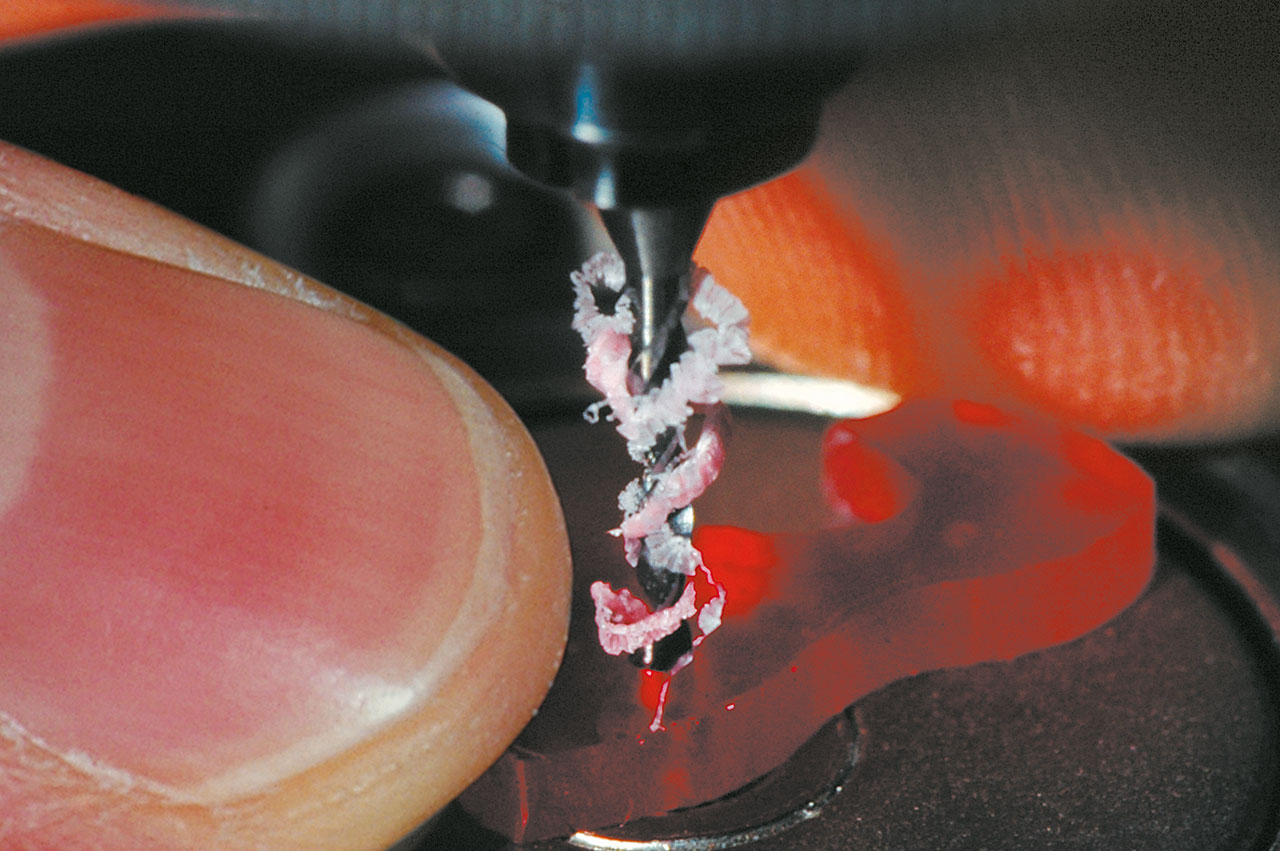

The drilling of the axis hole (diameter 1.5 mm).

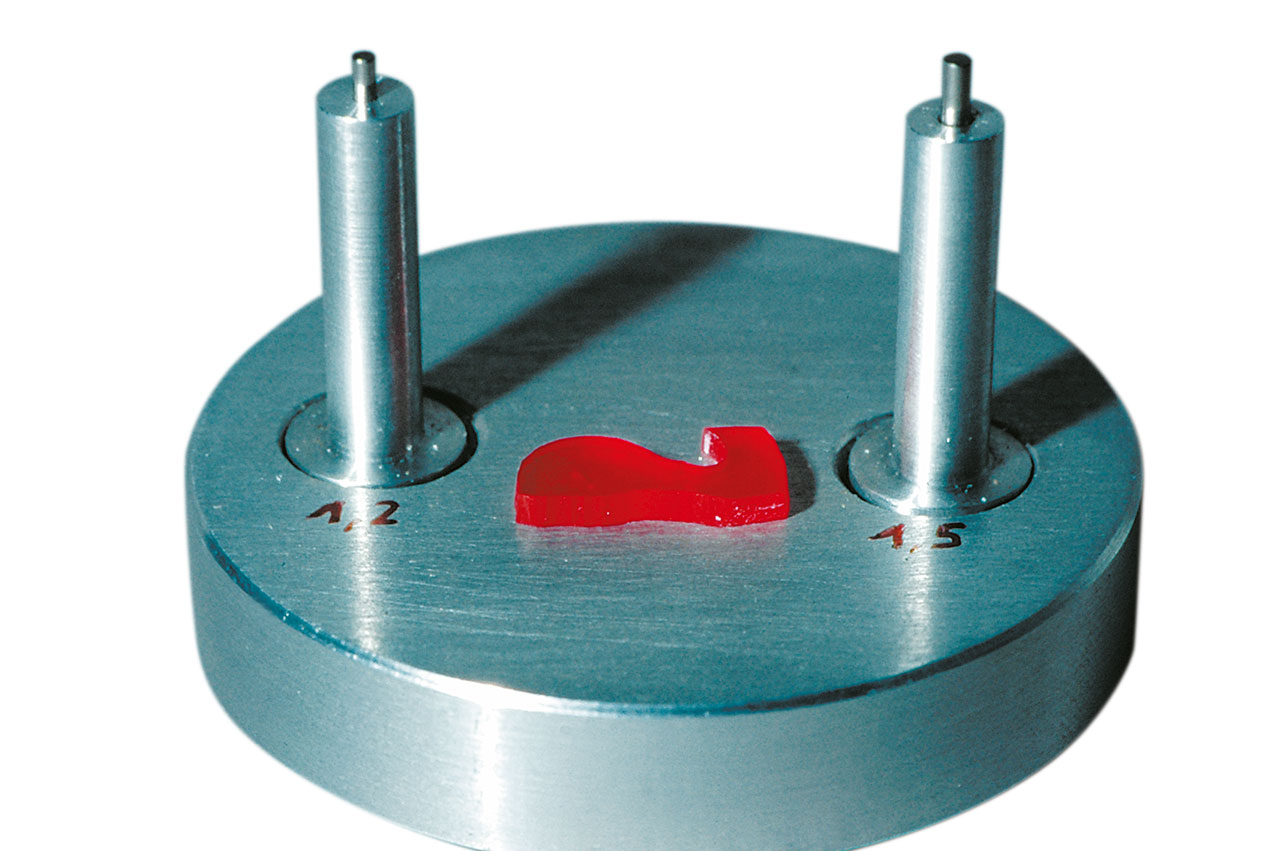

The prototype of the lock-milling tool.

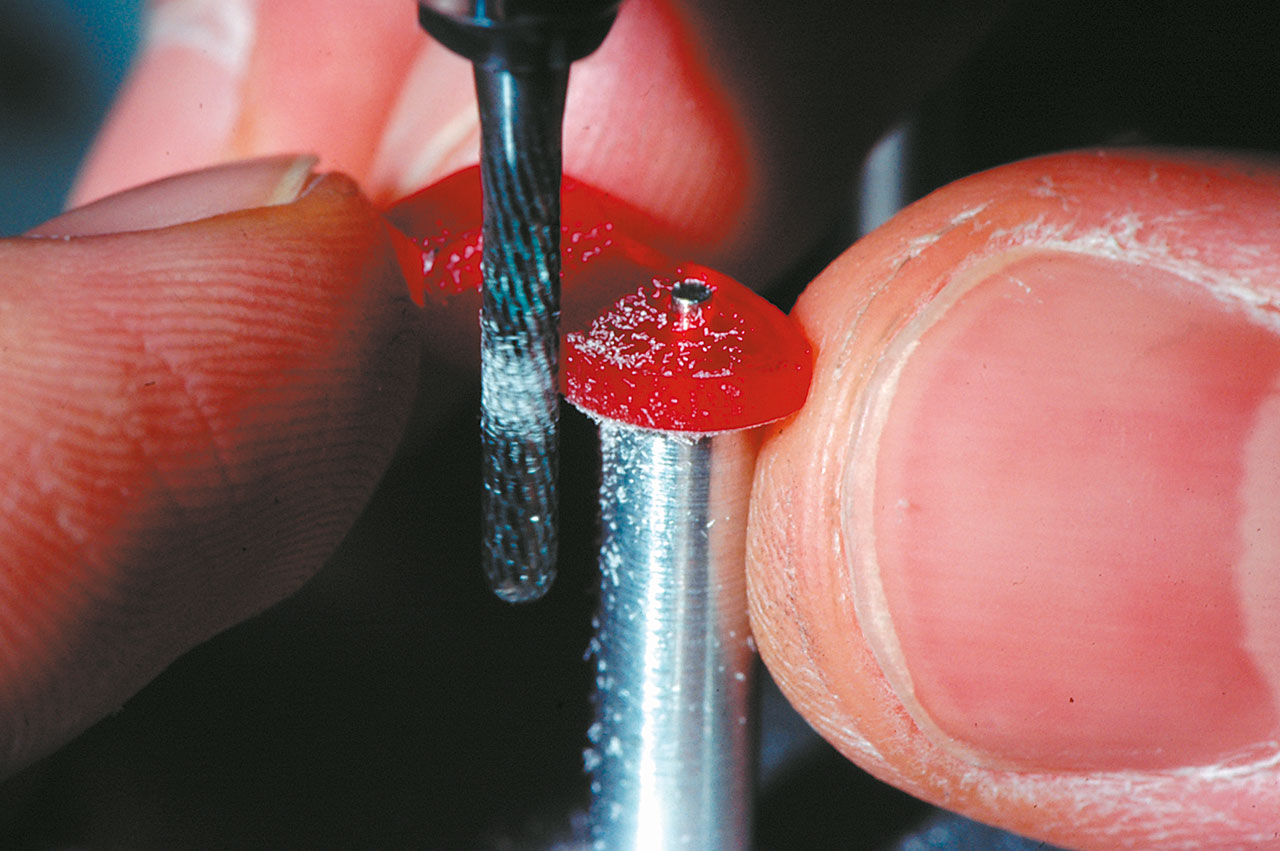

The milling of the acrylic lock.

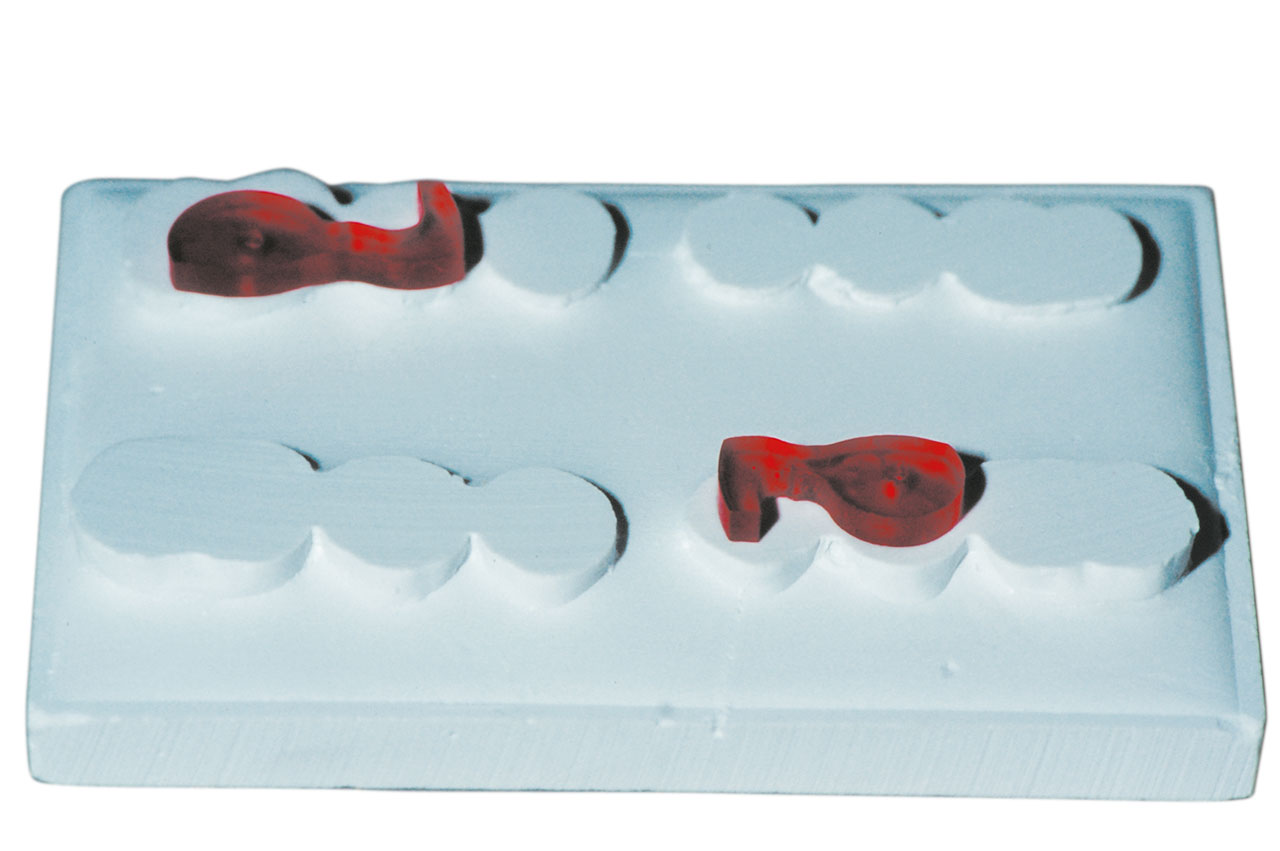

The finished acrylic locks in two sizes on top of the lock template.

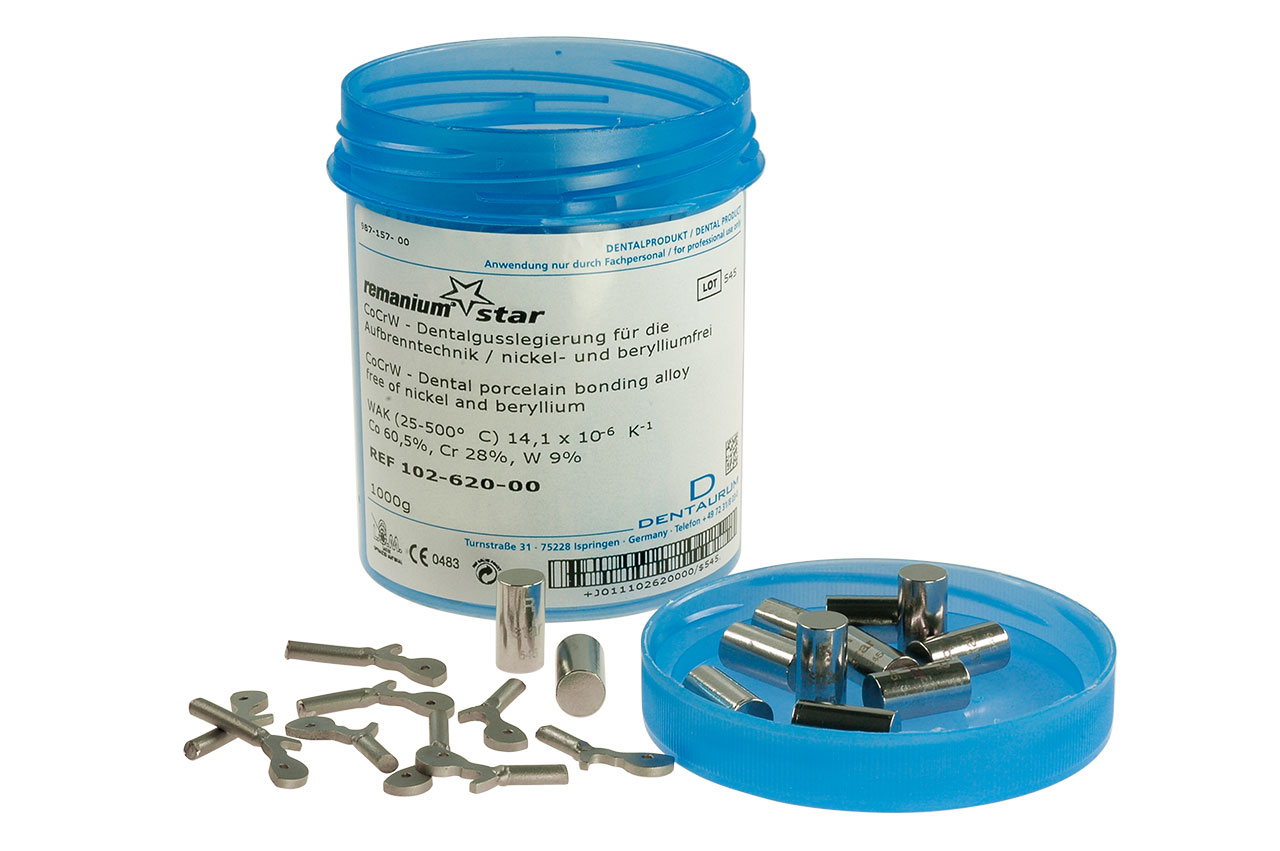

From an economic point of view a lab can prefabricate CoCr locks with different sizes. Who‘ll really keep gold locks on stock in the drawer?

The locks are cast with remanium^® star.

Swinglock
