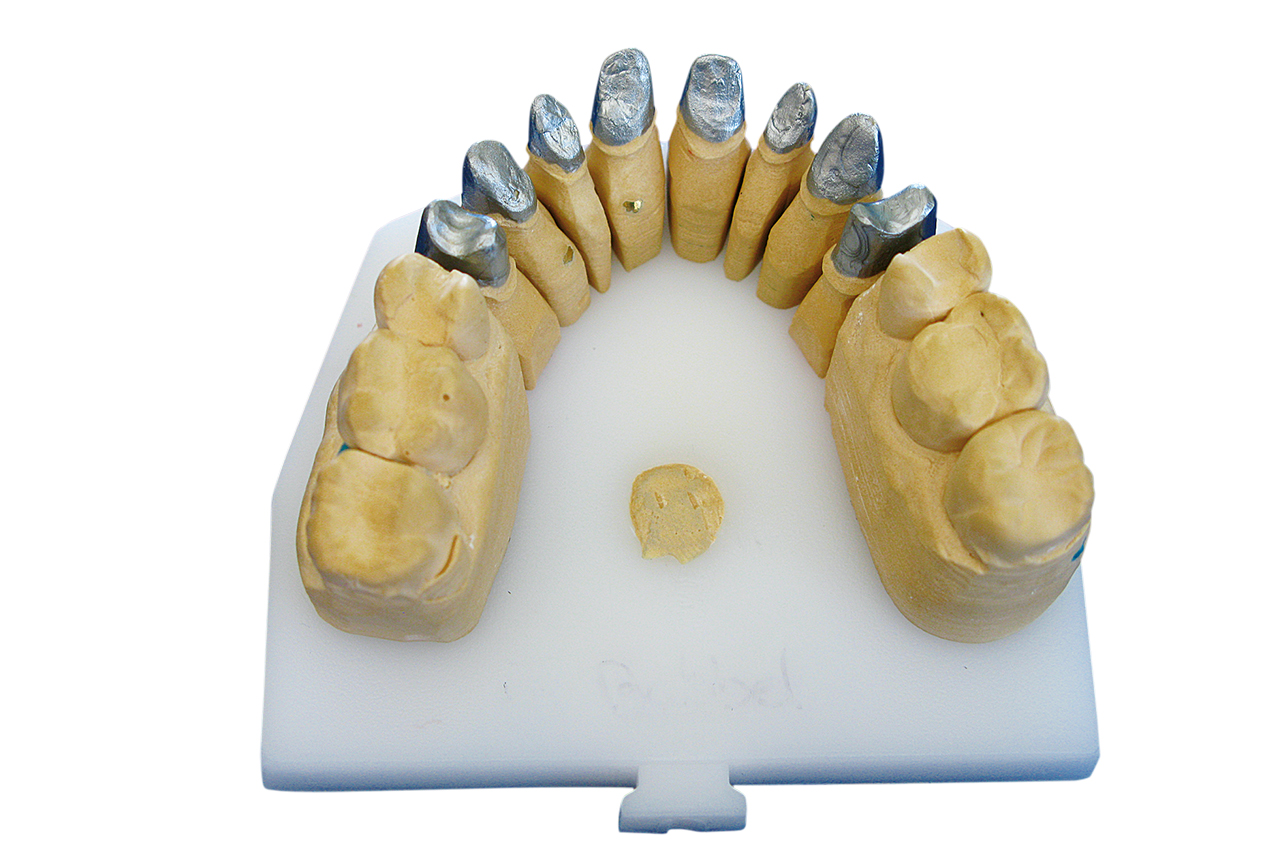

The initial situation:
Crowns connected from 14 to 24.

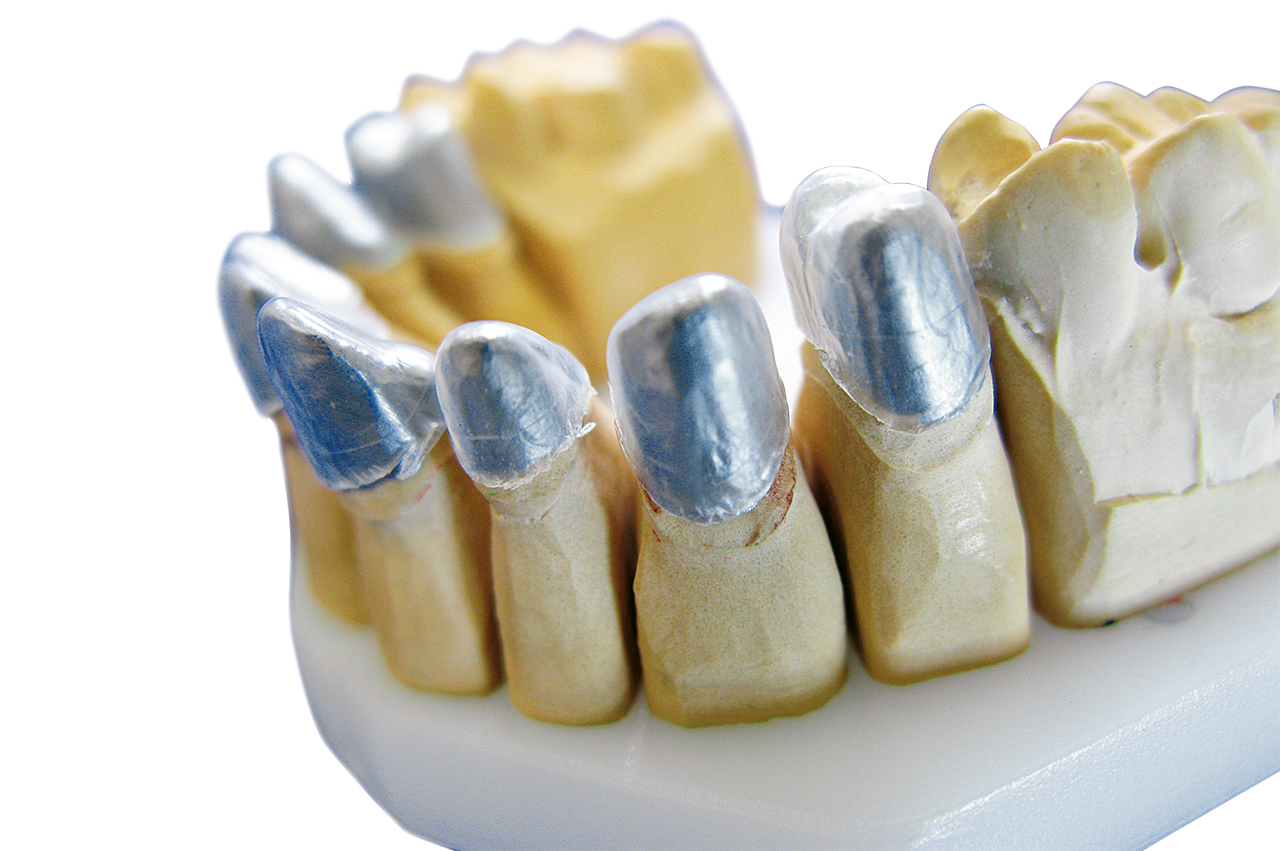

Fabrication of the copings with deep-drawing foil 1mm and spacer foil 0.1 mm.

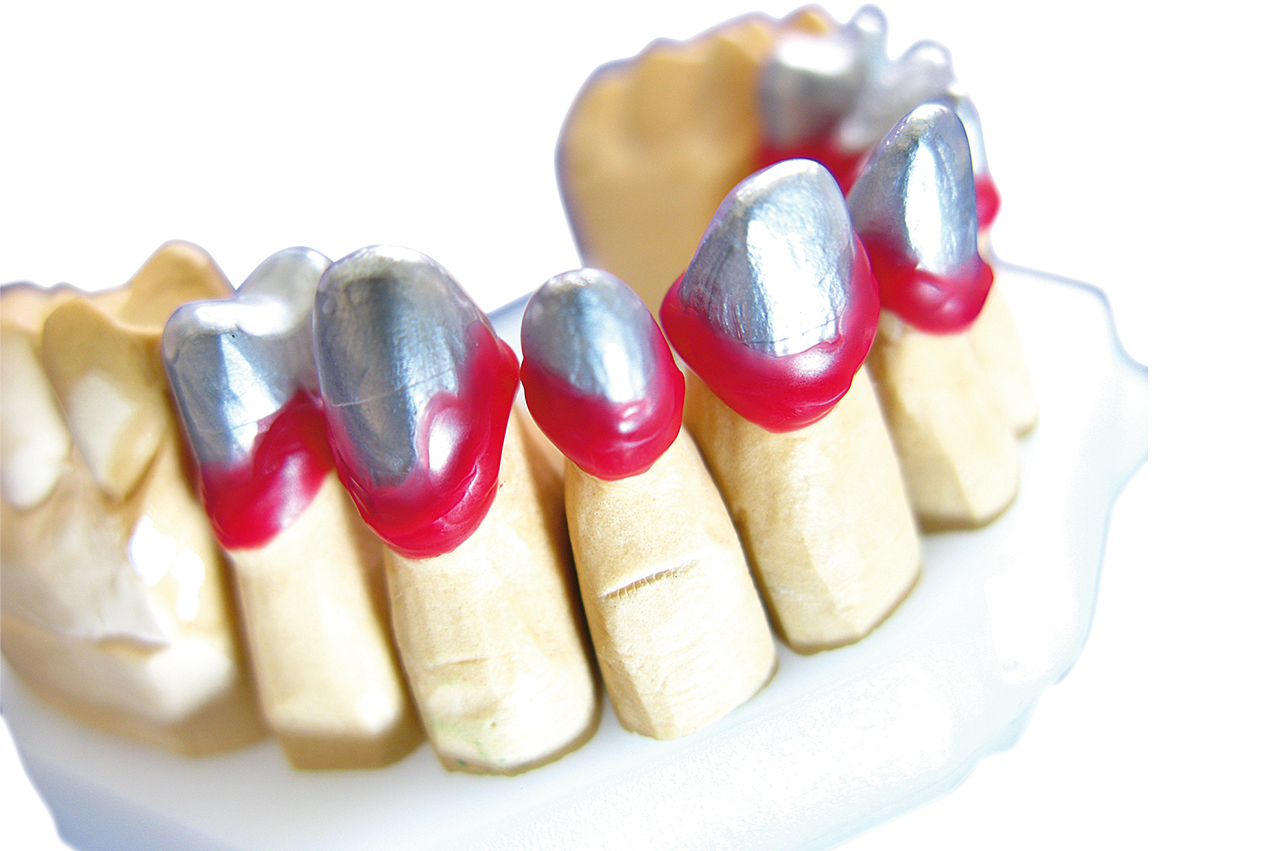

Wax up of the cervical area.

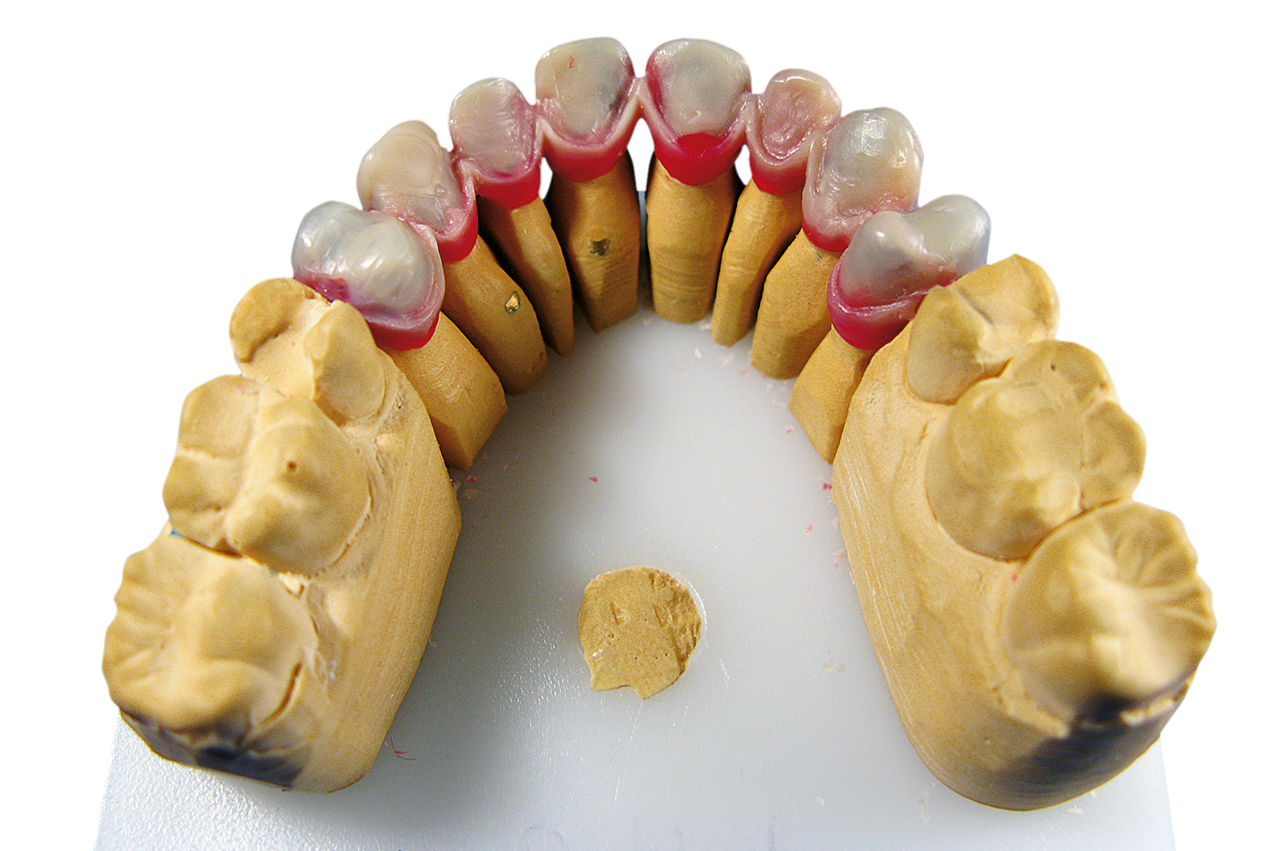

The wax-up of the crowns with collars in anatomically reduced shape.

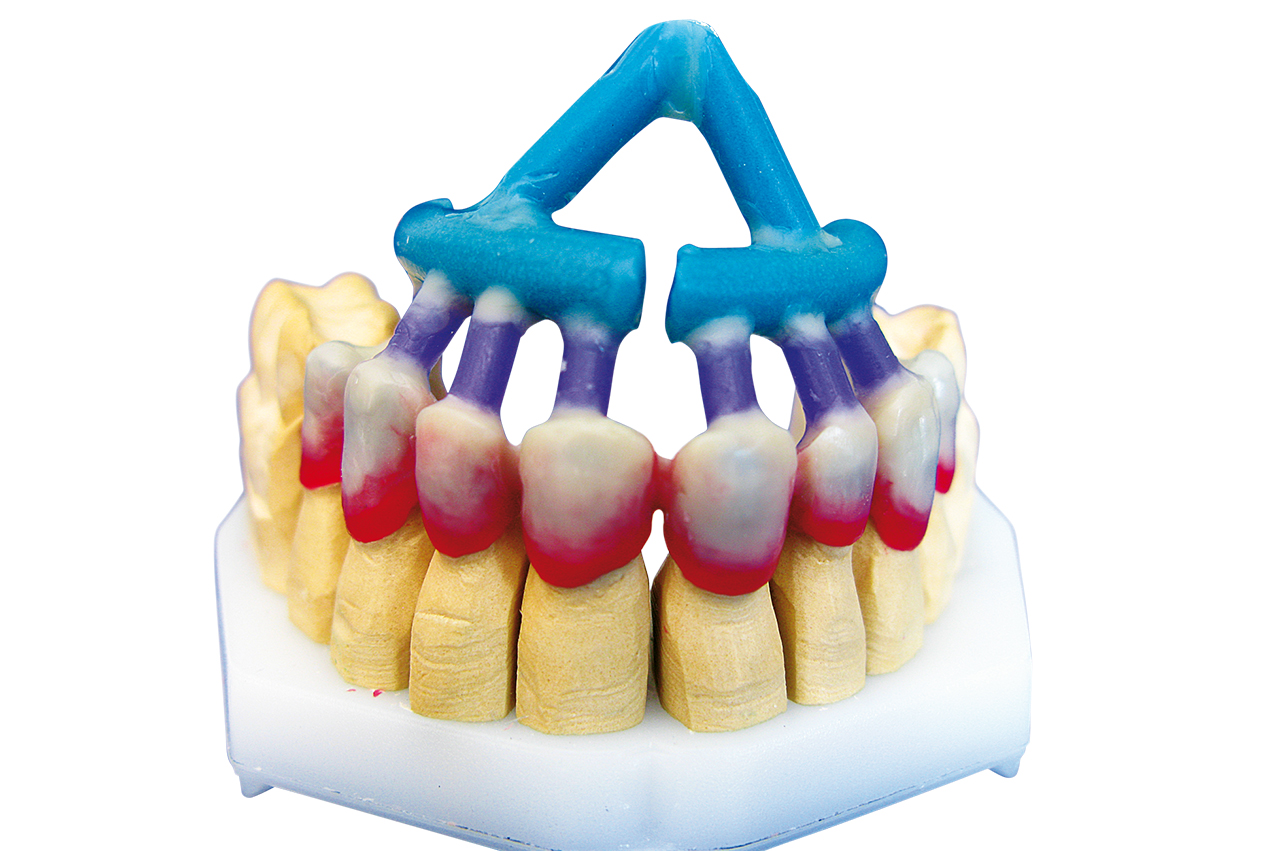

The spruing:

• 3 mm sprues
• 4 mm runner bar
• 3.5 mm feeder sprues

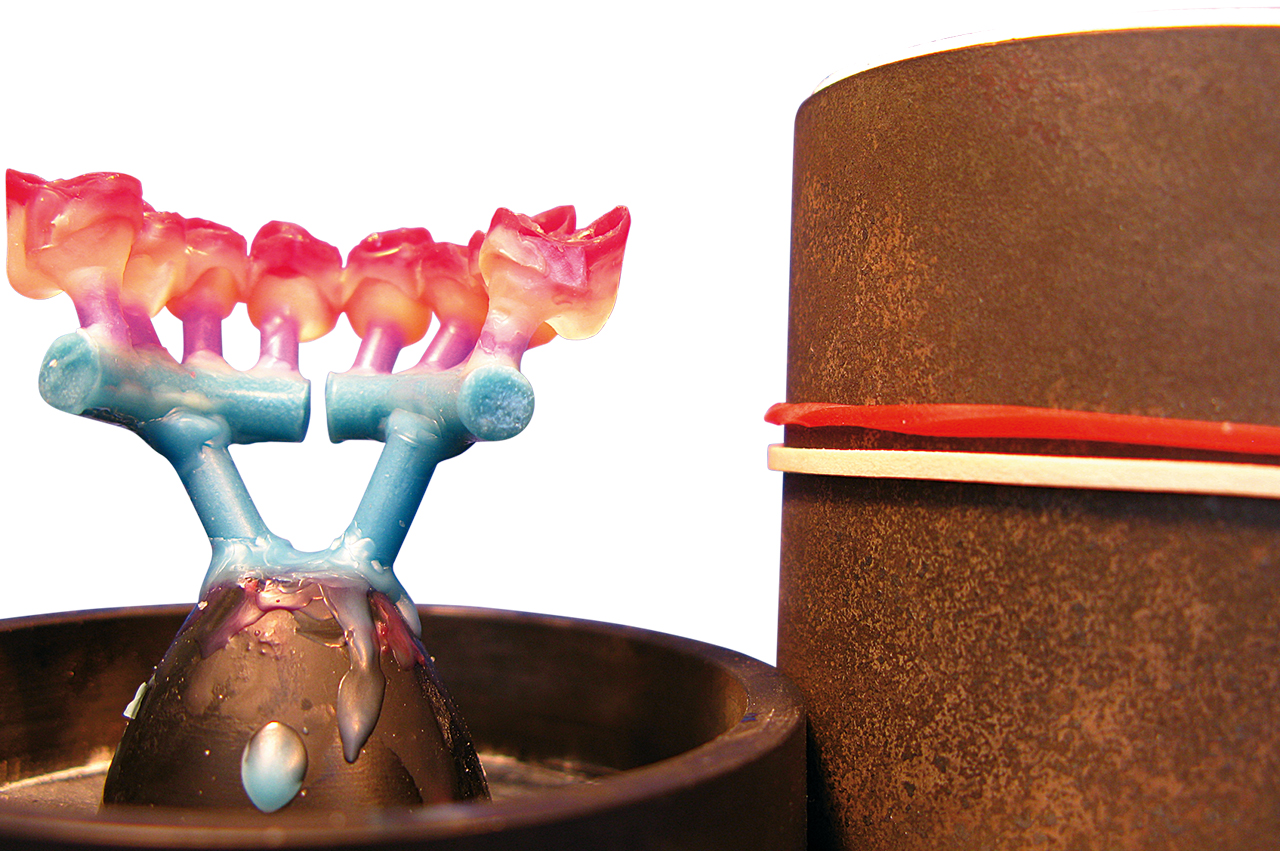

Positioning the casting object inside the ring.

Investing:

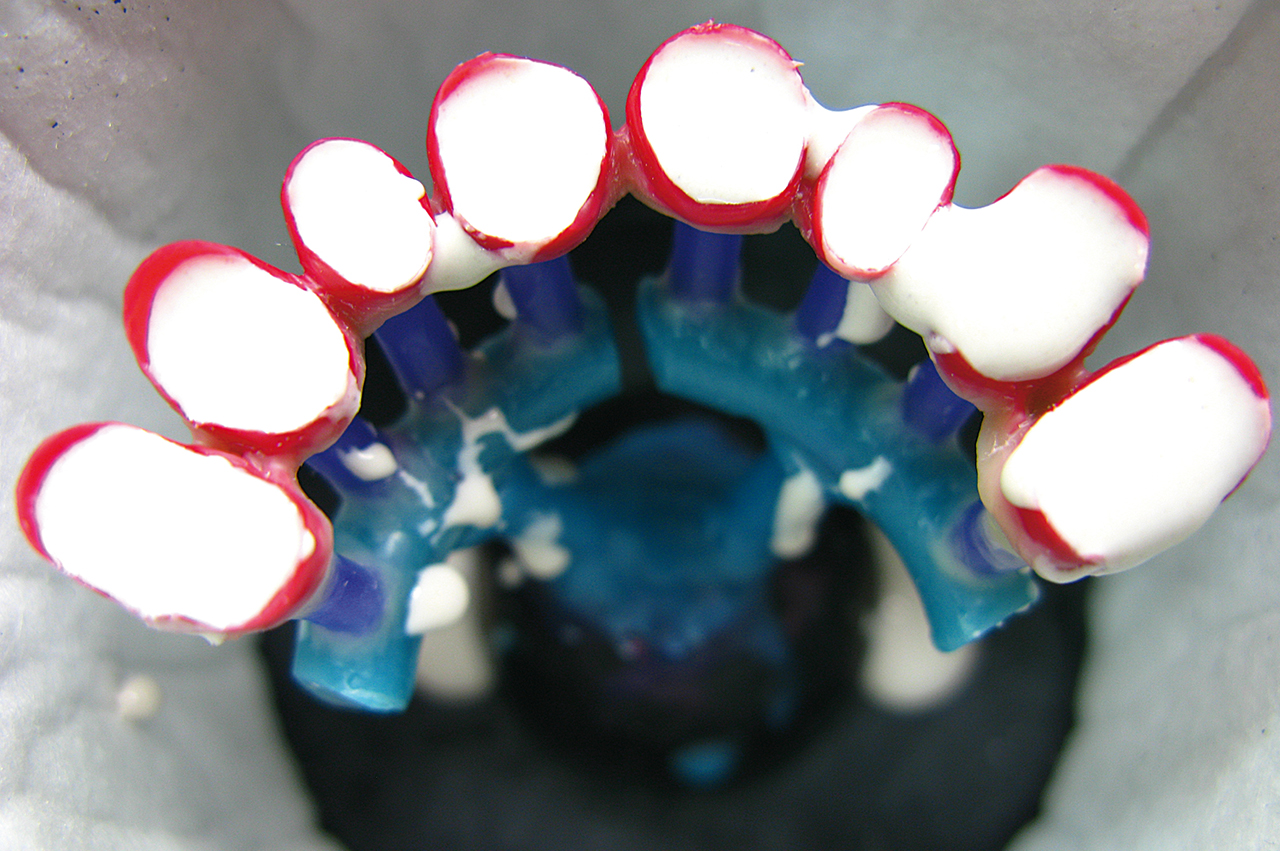

At first the crowns are filled with a concentration of 95%.

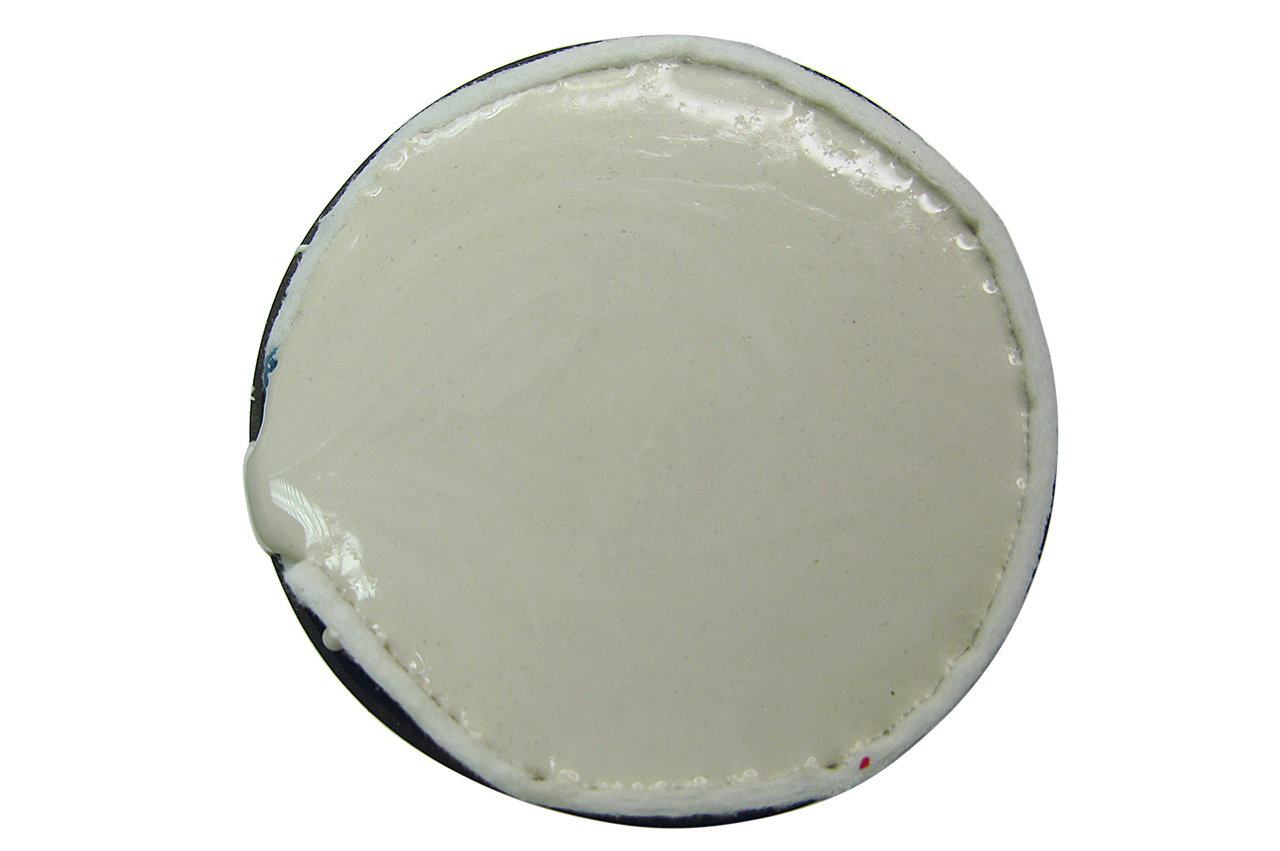

When the investment material inside the crowns begins to set, the ring is poured out with a concentration of 75%.

If both investment concentrations are processed too wetly, they can be mixed.

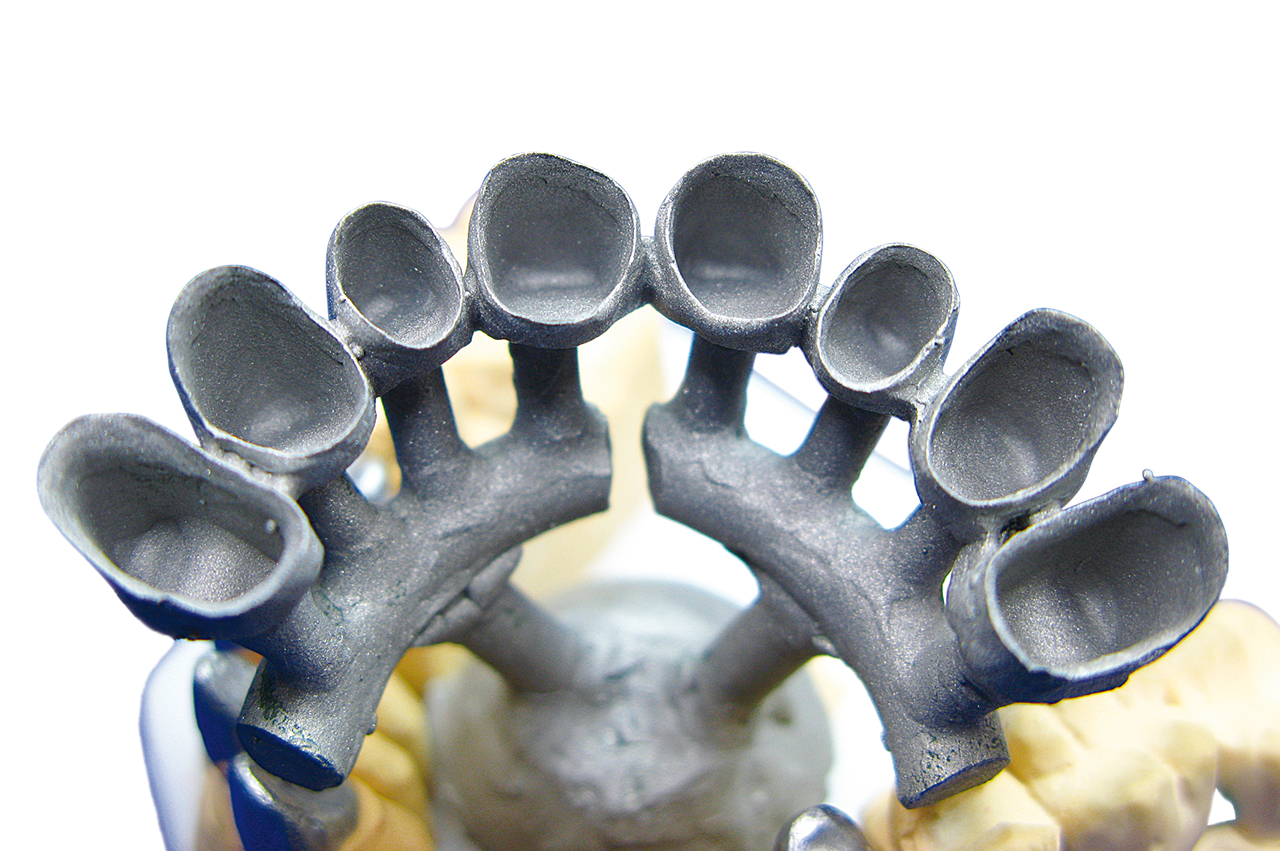

After casting, the crowns are trimmed inside.

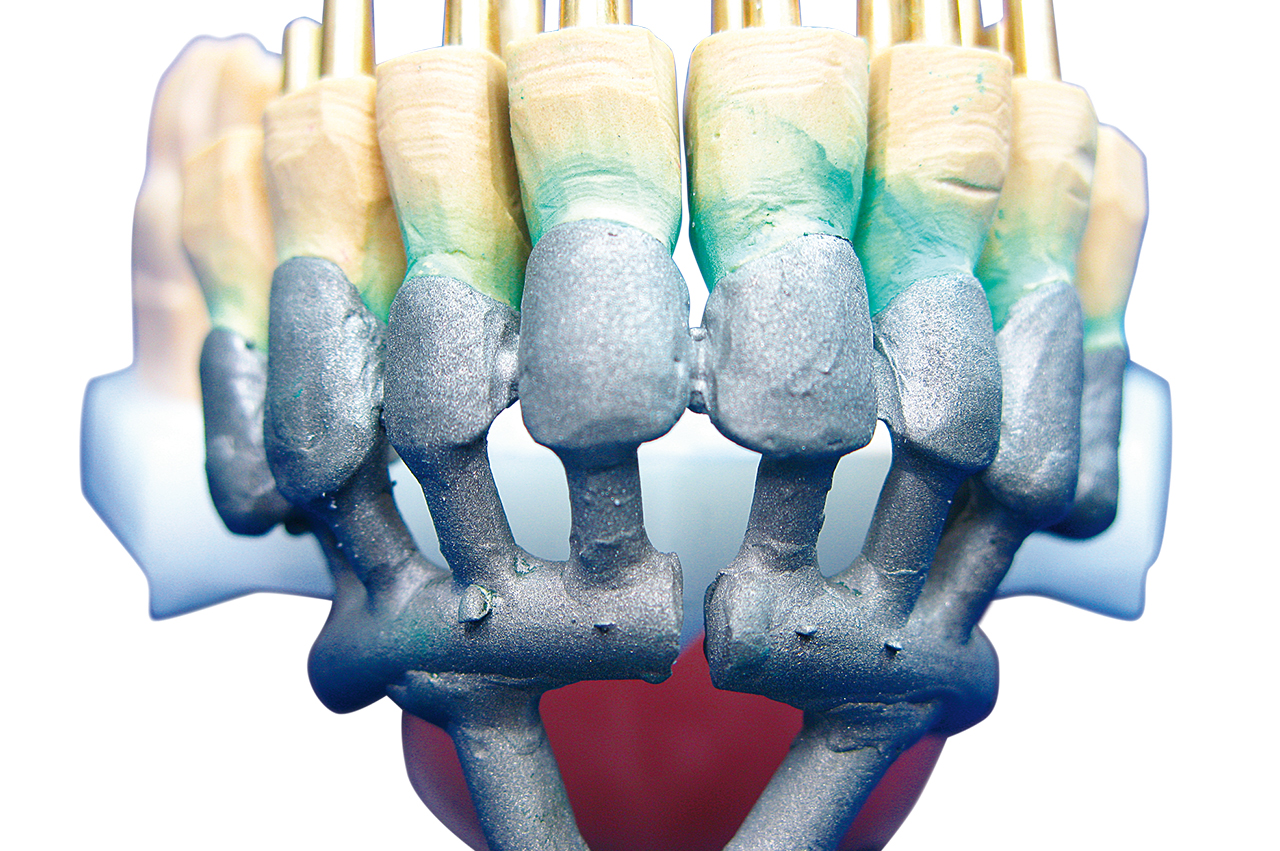

The single fit is checked by means of a marking spray.

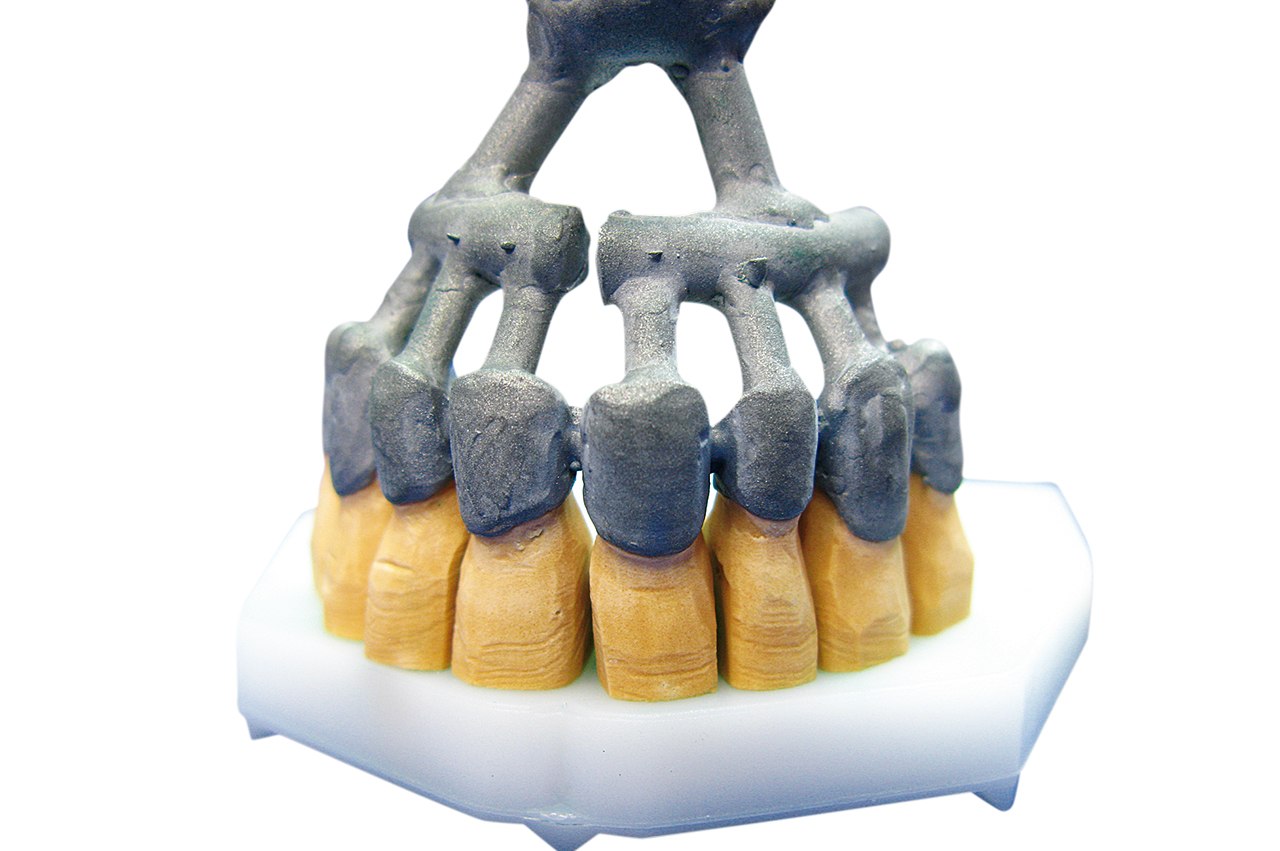

Then the total fit is controlled.

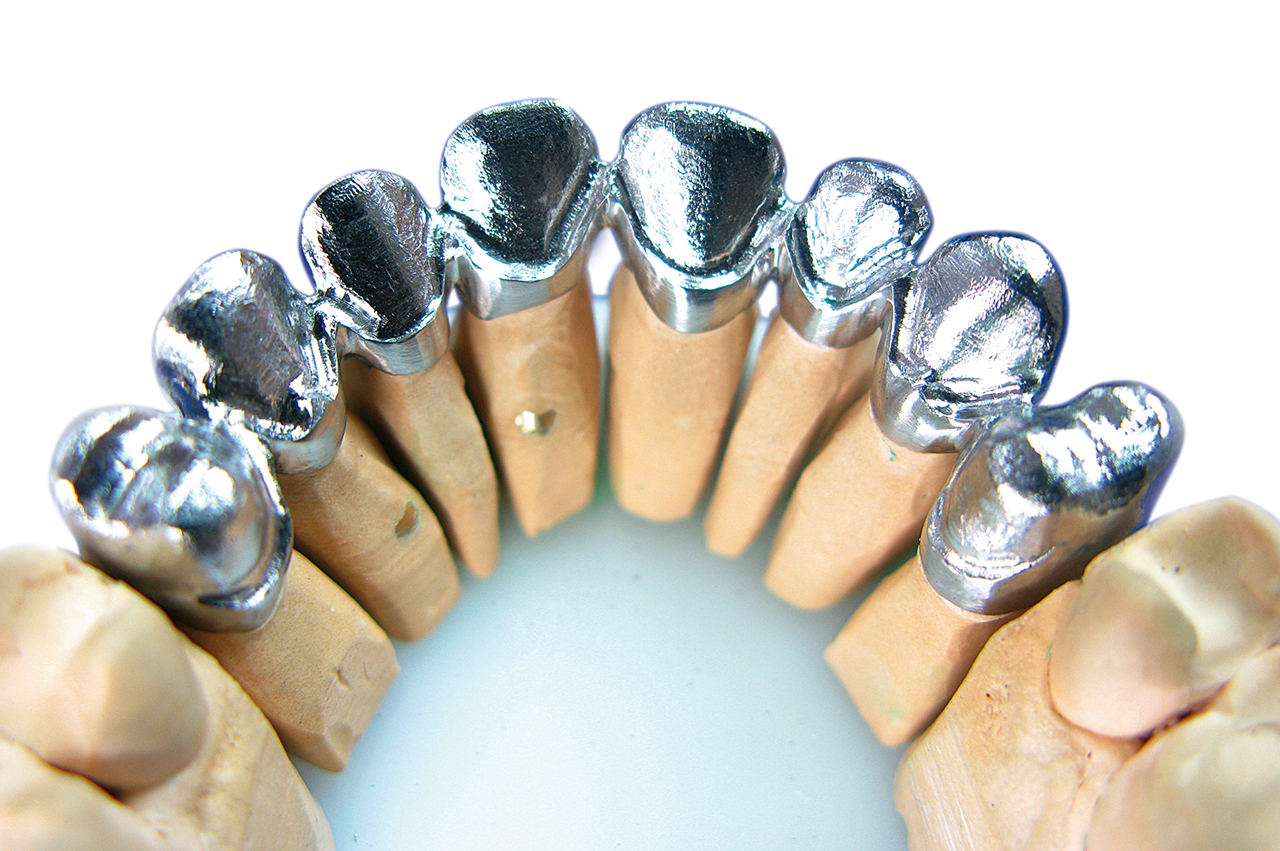

The finished bridge work with an excellent fit is prepared for ceramic veneering.
